High Speed Stable PE LDPE LLDPE PP PVC Pet Plastic Pulverizer Milling Grinder Machine Plastic Recycle Machine

Product Description

High Speed Stable PE LDPE LLDPE PP PVC PET Plastic Pulverizer Milling Grinder Machine Plastic Recycle Machine

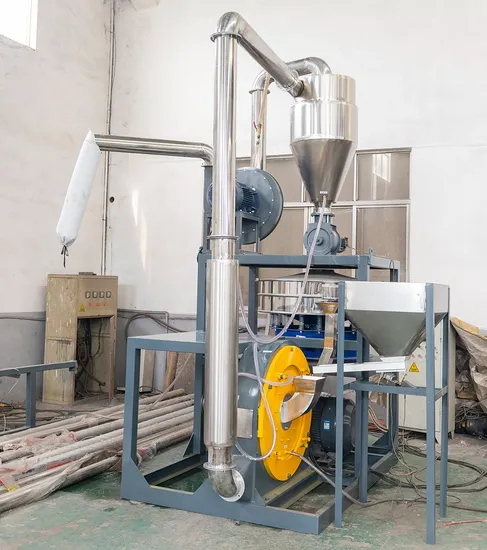

This SMF series pulverizer is widely used in rubber industry. It is also suitable for PE, PP, PVC flakes into powder.
The principle of the pulverizer is to drive the cutter head by the spindle equipped with imported precision bearings. Under the driving of the cutter head, the movable knife rotates at a high speed and is tangent to the fixed cutter, so that the incoming materials are strongly collided and milled. Powder, through the combination of wind and water cooling, effectively control the material crushing temperature, to ensure that the quality of the material to be crushed does not change, the machine is equipped with automatic feeding, discharging and automatic screening back grinding system, greatly reducing labor intensity. The whole grinding process is completely closed, no dust leakage, and when the refueling is cleaned, it is only necessary to open the door cover for maintenance. The host start is started in a new triangle mode, which greatly reduces the current when the motor starts.
Features:
1. The machine can grind various soft and hard materials into powders of 10mesh to 100mesh at room temperature;
2. Wide range of applications, PVC, PE and modified PP, ABS, PS, PA, PC and other plastics with different molecular structures can be used;
3. Compared with ordinary pulverizers, this type of machine has two or three times output. With automatic dust removal device, it is the most ideal energy-saving and environmentally friendly plastic pulverizing equipment in China.
4. The machine is composed of seven parts: automatic feeding, main engine, wind conveying system, cyclone separation, automatic screening, automatic coarse material grinding, and high efficiency dust removal system. It has a high degree of automation and a small area;
5. The sharpener is made of high quality imported steel, which has good wear resistance and is suitable for continuous operation.
6. The knife can be adjusted quickly, and the operation and maintenance are simple and easy;
7.The main shaft bearing adopts NSK, with all imported oil seals.
Technical Parameters:

No.	Name	SMF-500	SMF-610	SMF-800
1	Suitable material	PVC, PE, PP, ABS, PS, PA, PC and rubber
2	Bearing	NSK
3	Output powder	10-120mesh (optional)
4	Main motor power	37KW	55KW	75KW
5	Blower power	5.5KW*1pc	5.5KW*1pc	5.5KW*2pcs
6	Blade disk diameter	500mm	610mm	800mm
7	Vibrator	ZDS-800	ZDS-1000	ZDS-1200
8	Capacity	100-300kg	200-400kg	400-500kg
9	Flow valve power	0.75KW	0.75KW	0.75KW
10	Cooling type	Air & Water	Air & Water	Air & Water
11	Voltage	380V, 3PH, 50hz	380V, 3PH, 50hz	380V, 3PH, 50hz
12	Dimension	2600x2300x3000mm	3500x2400x4000mm	3800x2800x4000mm

---
