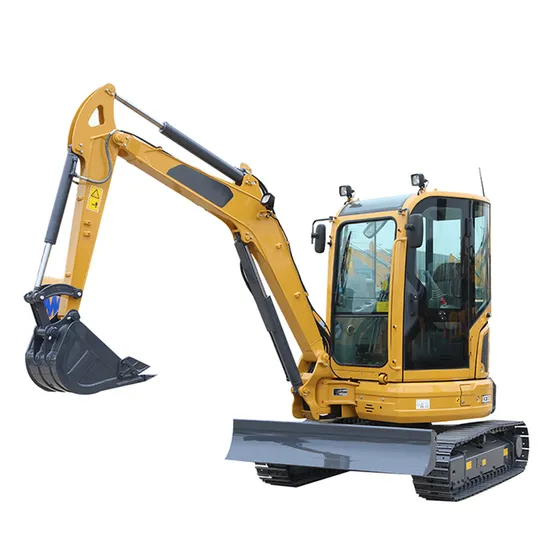

China 4ton Hydraulic Excavator Xe35u Micro Digger Micro Excavator

Product Description

China 4ton hydraulic excavator XE35U micro digger micro excavator XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
Advantages and highlights:
* More energy-conservation and environmental protection
By adopting Yanmar engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.
* More efficient return
Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.
* More reliable and durable
Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.

Model			Metric unit	XE35U
Operating weight			kg	4200
Bucket capacity			m3	0.11
Engine	Model			3TNV88-BPXG
	Displacement Standard			Tier IIIA
	Style	Direct injection	---	√
		Four strokes	---	√
		Water cooling	---	√
	No. of cylinders		---	3
	Output power		kW/ r/min	21.6/2400
	torque/speed		N.m	107.2/1444
	Displacement		L	1.642
Main performance	Travel speed(H/L)		km/h	3.6/2.2
	Gradeability		%	58
	Rotating speed		r/min	8.5
	Ground pressure		kPa	36.6
	Bucket digging force		kN	24.6
	Arm crowd force		kN	17.8
Appearance size	A	Overall length	mm	4960
	B	Overall width	mm	1740
	C	Overall height	mm	2535
	D	Width of platform	mm	1585
	E	Length of crawler	mm	2220
	F	Overall width of chassis	mm	1740
	G	Width of crawler	mm	300
	H	Track length on ground	mm	1440
	I	Crawler gauge	mm	1721
	J	Clearance under counterweight	mm	587
	K	Min. ground clearance	mm	297
	L	Min. tail swing radius	mm	870
Working scope	A	Max. digging height	mm	5215
	B	Max. dumping height	mm	3760
	C	Max. digging depth	mm	3060
	D	Max. vertical wall digging depth	mm	2260
	E	Max. digging reach	mm	5415
	F	Min. swing radius	mm	2170

---
