Sinotruk HOWO 8m3 10m3 12m3 15m3 16m3 20m3 Machine Concrete Mixer Truck Capacity

Product Description

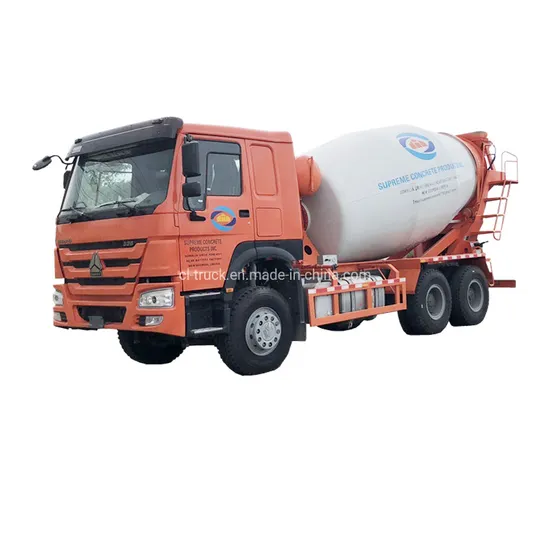

Sinotruk HOWO 8m3 10m3 12m3 15m3 16m3 20m3 machine concrete mixer truck capacity
Product information

Product Name	howo 6x4 concrete mixer truck 8-10cbm
Driving Type	6×4,left or right hand drive
Weights
GVW(kg)	25000
Curb weight(kg)	11700
Dimensions
Wheelbase(mm)	3825+1350
Overall Dimension(mm)	9480×2490×3810
Box dimension	8-10 CBM
Max speed(km/h)	90
Engine
Engine model	WD615.69(336HP)
Engine type	4 stroke water-cooled,inter-cooling
No. of cylinders	straight-6 cylinders
Displacement(L)	9.726L
Max. output (kw)	247kw
Drive Line
Transmission	HW19710,10 forwards,2 reverse gear,manual operation
Steering	With power steering
Brake system	Air brake
Cab
Cab	HOWO
Standard configuration	with A/C
Axle
Front axle	9TONS
Rear axle	16tons X2
Tire specification
Tire specification	12.00R20 standard tire,10 tires+1 spare tire
Specification fuction of concrete mixer truck
Mixer drum parameter	Tanker Material:Q345
	Filling speed (M3/min) ≥ 2.8
	Unloading speed (M3/min)≥ 1.2
	Discharge reside rat( %)≤ 0.5
	Mixer drum rotation speed(rpm) 0~12
Driving system	Reducer:Italy PMP or other band
	Hydraulic pump: Italy PMP or other brand
	Hydraulic motor: Italy PMP or other brand
	Heat device : changzhou(made in china)
Water supply system	Tank volume: 400L
	Air pressure water supply
Operating system	Model:linkage operation

Company information 1. ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW .Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, garbage truck,sewage suction truck, fuel tank, high-altitude operation truck, truck mounted crane, dump truck, LED advertising truck,LPG truck/trailer,LPG filling tank, van truck, semi-trailer, fire engine, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
3.Quality control:our company truck pass ISO,3C,ASME certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4. Export market: Africa,Asia,South America,Pacific and so on
5.Our company cooperate with famous chasis manufacturers,such as DONGFENG,SHINOTRUK,FOTON, JAC,JMC ,SHACMAN,FAW and etc.


Service 1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.
Success Case Show
FAQ 1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
2.What about quality ?
Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
our company truck pass ISO,3C,ASME certification.
3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport. And if need the invitation letter ,pls send your private information and company information to me.

---
