Cow Barn Animal Equipment Manure Scraper

Product Description

Product Introduction
The scraper system cleans the manure with the chain pulling the scraper, while no collision to the cow. The wear and tear parts are made of special heat treated material, lifespan 5 times longer than ordinary casting material.
The scraper system mainly divides into two types according to the length of the manure passage:
The first type is single axis scraper, suitable for barn less than 150 meters long,type GFB-1
The second type is three axes steering scraper, suitable for long-distance barn about 150-240 meters long,type GFB-3.
Preventing collision with cows function, deicing function,Dual intelligent distance recognition mode (Hall sensing, current detection).
Price different according to the length of the cowshed.
Sketch Map
Specification

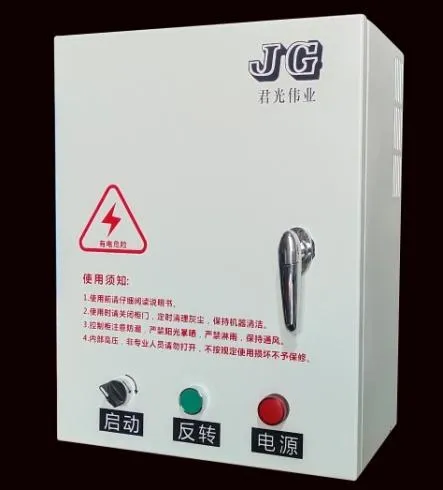

Product Composition--Drive Unit,scraper,steering wheel,control Unit,the chain,etc.
Moving speed:4-6meters per minute
Maximum distance that can be scraped: 90m to 180m
Motor: 1.5KW,380V,shaft diameter 60mm,1440rpm,reduction ratio1:246,Drive wheel thickness over 80mm.
Chain:14mm×50mm, High strength, wear-resistant, and corrosion-resistant,25Mnv,4kg/meter,Max chain tighten distance:800mm,Breaking force greater than 24T
Scraper beam: 100*100*8mm, width:less than 4.6m,height: 210mm,Q235,Wear resistant feet:60Si2Mn,guide rod:1.2m,
Corner wheel: T-shaped, heat treated 45 # steel wheel, anti chain twisting, self guiding to drive wheel, steel plate thickness: 10mm,45 # steel heat treated, maintenance free. Axis diameter: 30mm, graphite lubricated
Total length according to the length of the cowshed,total price change accordingly.
Application
Details
FAQ Q1. Are you a factory or trading company?A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.

---
