| General | |

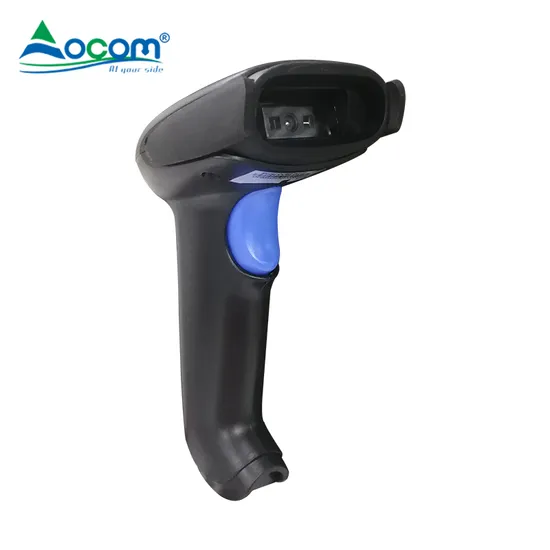

| Model | OCBS-W217 |
| Color | Black |
| Material | ABS+PC |
| IP grade | IP42 |
| Processor | 32-bit ARM MCU + DSP |
| Wireless | 100 meters 2.4G wireless |
| Power supply | DC 5V ±5% |
| Interface | USB |
| Battery | 1200mAh |
| Power consumption | 375mW(Working);226mW(standy);750mW(Max) |
| Prompt mode | Buzzer, indicator(LED) |
| Trigger mode | Manual,Continuous scanning,Auto-sensing |
| Memory | 16MB |
| Working time | 12 hours |
| Charging time | 4 hours |
| ESD Protection | 15KV air discharge |
| Shock resistance | 1.5m free fall on concrete surface |
| System Supported | Linux,Android,Windows XP,7,8,10,MAC |
| Performance | |
| Sensor | CMOS sensor |
| Light source | Red LED(Aiming)+White LED(Lighting) |
| Reading Mode | Image |
| Print contrast | ≥25% |
| Resolution | ≥4mil(PCS90%,CODE 39) |
| Movement tolerance | 25cm/s |
| Scanning Angel | Roll360°,Pitch30°,Yaw45° |
| Scanning Depth | Code39 4.17mil(15 bytes): 4cm-8cm Code128 4.17mil(16 bytes):7cm- 15cm Data Matrix 10.83mil(8 bytes):3cm-9cm Code QR 20mil (8 bytes):1cm- 19cm |
| Error rate | 1/5 million |
| Decoding ability | 1D:Code25-Interleaved,Code25-Standard ,Code25-Matrix, Code39-Regular ,Code39-FullASCII ,Code32,Code128,EAN/GSL/UCC-128Auto,Codabar,MSI,EAN/JAN-13,UPC-A,JAN-8,UPCE 2D:QR,Data Matrix ,PDF417 |
| Physical | |
| Weight | Gross:289g |
| 20 in 1 carton | 455*415*210mm/6.65kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
