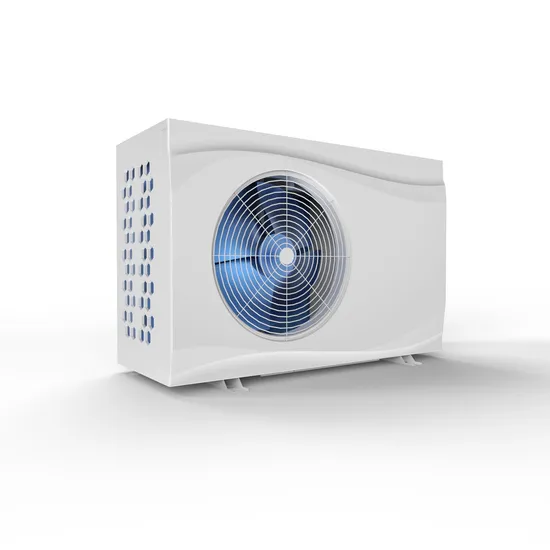

DC Inverter Swimming Pool Heat Pump with R32 Refrigerant

Product Description

DC INVERTER SWIMMING POOL HEAT PUMP WITH R32 REFRIGERANT
OUR HEATING CAPACITY ALL TRUE, TESTED IN LABORATORY WITH LONG TIME. THE MAXIMUM HEATING CAPACITY NOT FOR ONLY FEW MINUTES UNDER VERY HIGH FREQUENCY, OUR MAXIMUM HEATING CAPACITY MEANS THE REASONABLE CAPACITY WHICH OUR HEAT PUMP CAN ALWAYS WORK FOR LONG TIME. FOR EXAMPLE FOR THE MODEL DSP02PS-P2D, THE MAXIMUM HEATING CAPACITY 11KW, WE CAN WRITE 13KW BUT WE DID NOT, BECAUSE WHEN IT IS 13KW THEN IT MEANS FREQUENCY TOO HIGH WHICH WILL REDUCE THE LIFETIME OF COMPRESSOR AND FAN MOTOR.
PRODUCT FEATURES:
ABS Plastic casing, with ASA film, warranty 5 years no colour change.
ECO friendly new refrigerant: R32
ODP (Ozone Depletion Potential) is 0;
GWP (Global Warming Potential) only 675, only approximately 1/3 compare with R410A.
Higher efficient technology:
Well-known brand GMCC compressor, twin-rotary and DC Inverter technology, lower noise but more efficient.
New Brushless DC fan motor, with good quality of long time running test and low noise.
Sanhua brand electronic expansion valve for precise refrigerant control.
High COP/EER performance for save energy:
Notes: The swimming pool volume is 45m3 and pool water temperature keeps at 26ºC.
More detailed advantages of DC Inverter technology
Super quiet GMCC compressor and DC motor help full wave inverter heat pump to quiet running.
With CFD air flow technology, newly designed fan blower and the outlet grill bring super quite and high efficient running.
Newly designed controller, three modes design, maximise your pool season
Boost Mode
20% - 100% capacity output
Fast heating
Late spring/early autumn in cooler climate
Smart Mode
20% - 80% capacity output
As standard
Spring to Autumn in warm climate
Silent Mode
20% - 50% capacity output
Using at night
Middle of summer in hot climate
KONNEN NEW FACTORY(HEAT PUMP + WATER TANK + CONTROLLER):
WHY US:
KONNEN NEW PROJECTS:
WORLD FAMOUS BRAND WE COOPERATED FOR OUR HEAT PUMPS:
HEAT PUMP LOADING:
PARAMETERS TABLE:

DC Inverter Swimming Pool Heat pump(R32)
Model			DSP02PS-P2D	DSP03PS-P2D	DSP04PS-P2D	DSP05PS-P5D	DSP06PS-P5D	DSP07PS-P7D	DSP08PS-P7D
Advised pool volume			25m³-50m³	30m³-60m³	35m³-70m³	60m³-100m³	65m³-110m³	70m³-130m³	80m³-150m³
Operating ambient air temperature			-5ºC~43ºC	-5ºC~43ºC	-5ºC~43ºC	-5ºC~43ºC	-5ºC~43ºC	-5ºC~43ºC	-5ºC~43ºC
Performance condition 1-Air:26ºC,RH80%,inlet/outlet water temperature:26ºC/28ºC
Heating capacity		KW	2.72-11.00	3.50-14.20	4.24-17.45	5.75-23.24	6.22-25.13	6.62-29.03	7.71-31.73
COP			6.30-14.84	6.19-14.66	6.00-14.53	6.11-14.55	6.21-14.55	6.12-14.56	6.12-14.61
Performance condition 2-Air:15ºC,RH70%,inlet water/outlet temperature:26ºC/28ºC
Heating capacity		KW	2.20-8.15	2.90-10.70	3.55-13.00	4.65-17.36	5.17-18.55	5.46-21.31	6.34-23.69
COP			4.95-7.85	4.95-7.65	4.85-7.49	4.81-7.65	4.93-7.55	4.97-7.52	4.91-7.61
Performance condition 3-Air:35ºC DB,inlet/outlet water temperature:30ºC/28ºC
cooing capacity		KW	2.45-6.00	3.25-7.90	3.95-9.65	5.33-12.83	5.85-13.93	6.21-16.02	7.21-17.52
EER			4.35-7.35	4.40-7.40	4.20-7.40	4.15-7.25	4.18-7.23	4.31-7.55	4.20-7.45
Refrigerant type			R32	R32	R32	R32	R32	R32	R32
Power supply			230V~,1Ph,50Hz	230V~,1Ph,50Hz	230V~,1Ph,50Hz	230V~,1Ph,50Hz	230V~,1Ph,50Hz	230V~,1Ph,50Hz	230V~,1Ph,50Hz
Inlet/outlet water pipes			G1-1/2′	G1-1/2′	G1-1/2′	G1-1/2′	G1-1/2′	G1-1/2′	G1-1/2′
Advised water flow		m³/h	4~6	5~7	6~8	8~10	8~11	9~12	12~15
Dimension	Unit(W×D×H)	mm	991×400×642	991×400×642	991×400×642	1081×450×707	1081×450×707	1181×469×807	1181×469×807
	Packing(W×D×H)	mm	1056×449×767	1056×449×767	1056×449×767	1146×498×832	1146×498×832	1246×518×932	1246×518×932
Net/Gross weight		KG	44/54	46/56	56/66	70/83	72/85	90/108	98/116
Loading(40HQ/20GP)		Pcs	165/77	165/77	165/77	144/44	144/44	72/32	72/32
Notes:
1. Advised pool volume for the pool with isothermal cover.
2. The specification may be changed for product improvement, please refer to the nameplate of product.
