LED Sign/Advertising Equipment/ Channel Letter Equipment

US$4,200.00 1 Set (MOQ)

Basic Info.

Model NO.
BWZ-B1
Automation
Automatic
Suitable for
Aluminum
Type
Coiling Bending Machine
Availabe Material
Aluminum, Stainless Steel, Galvanized Iron
Material Thickness
Aluminum 0.3-1.2mm, Stainless Steel≤1mm
Material Width
Max.128mm
Solt Motor
Servo Motor
Bending Radius
Min.10mm
Application
Machinery & Hardware, Advertising
Type for Fold-Bending Machine
CNC Fold-Bend Machine
Type for Pipe and Tube Bending Machine
Digital Pipe Bender
After-Sale Service
Engineer Speaking English Available
Feeding
Feeding Wheel+Encoder
Working Voltage
220V50-60Hz1p
Transport Package
Standard Export Package Which Can Protect Machine
Specification
CE, SGS, TUV
Trademark
Baoyuantong
Origin
Weifang, China
HS Code
84798190
Production Capacity
80 Sets/Month

Packaging & Delivery

Package Size
210.00cm * 80.00cm * 165.00cm
Package Gross Weight
320.000kg

Product Description

Product Description

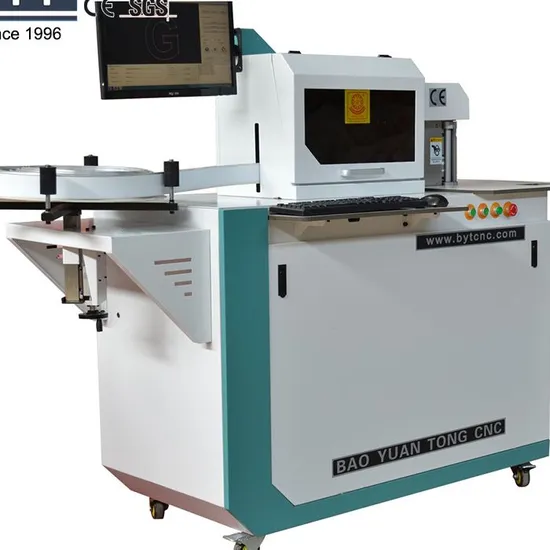

Full Automatic Signs Making Channel Letter Bender for flat Triangle folded edge aluminum coils
Product Description
Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials aluminum profiles, aluminum strip ) and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faste
Whole machine feature:
1.Whole machine guarantee 2 years , the motor guarantee 3 years
2. Processing material height 10-180mm, Thickness : Aluminum 0.3-1.5mm,
Suitable for most of Aluminum profile
3.All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4.The motor and driver use the transformer with voltage digital display device to replace switching power,monitor the voltage situation and remind customer to do the corresponding treatment when the voltage is unstable .
5. The software have Length closed-loop control system ,the length precision ≤0.1mm.
Meantime Independent development software system , which can updated according customer need and more easy to use .
Technical data:
Model BWZ-B1
Function Automatic feeding,slotting and bending
Applicable Material
Alu=Aluminum
Flat Alu,Folding Alu,Channelume
Material Width Flat Alu:≤180mm Folding Alu:≤160mm
Channelume:70,90,110mm
Material Thickness Aluminum:0.3~1.5mm
Bending Radius 7mm
Feeding φ36mm feeding wheel+Guide material auxiliary+Encoder
Slotting System Motor control
Bending Coupled extrusion-Double copper shaft flat arc bender
Control System ADT
Power <1500W
Air Pressure 0.6MPa
File Format Dxf, Ai,Plt
Working Voltage 220V/ 50-60HZ/1P
Net Weight(kgs) 270
Overall Size(mm)(L*W*H) 2100*800*1530
