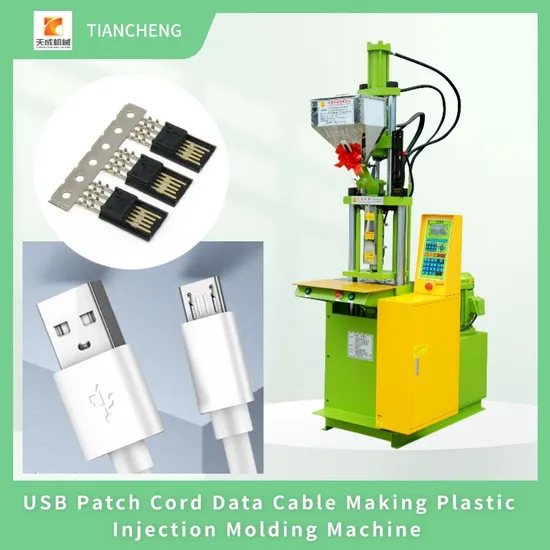

15t Factory Price USB Patch Cord Data Cable Making Plastic Injection Molding Machine

Product Description

15T Factory Price USB Patch Cord Data Cable Making Plastic Injection Molding Machine Product Description
Main Features 1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.
Vertical injection machine have the advantage of low noise, low energy consumption, high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables, auto parts, Plug, etc.
Product Parameters

Brand Name	TianCheng		Style	VERTICAL
Condition	New		Model NO.	TC-250-P
Screw Diameter (MM)	26--30		Max.Hydraulic Pressure(Kg/cm3)	140
Maximum injection Pressure (Kg/cm2)	1325--996		Pump Output (L/min)	30
Theoretical Shot Volume (Cm3)	55--74		Oil Tank Capacity (L)	116
Maximum Shot Weight (G/oz)	50/1.8--66/2.5		Cooling Water Consumption(L/H)	600-800
Injection Rate (Cm3/sec)	45--59		Electric Power (KW)	4
Screw Speed (R/Min)	0--150		Total capacitance (KW)	2
Screw Rate (MM)	106		Total Wattage (KW)	6
Nozzle Retraction Stroke (MM)	150		Machine Specification(M)	1.5*1.05*2.35
Clamping Force (Ton)	25		Weight of Machine (KG)	1100
Opening Force (Ton)	7		Plastic Processed	PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP
Platen Size (MM)	500*340		After-sales Service Provided	Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Distance Between Tie-Bere (MM)	370*200		After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
minimum Mold Thickness (MM)	60/120		Warranty	1 year
Opening Stroke (MM)	200		Applicable Industries	Manufacturing Plant, Construction works , Energy & Mining, Other
Max-Distance opening mold (MM)	260/320
Max.Mold Size	350*280
Ejector Force (Ton)	1.3
Ejector Stoke (MM)	35

Packaging & Shipping
1. The standard package is wooden box with fumigation.
2. We can also pack it according to customers special request.
Delivery Time 3-20 days after confirming order, detail delivery date should be decided according to
Production season and order quantity. Certifications
Successful transaction
FAQ

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Why choose TianCheng Machinery Co., Ltd.?

A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
