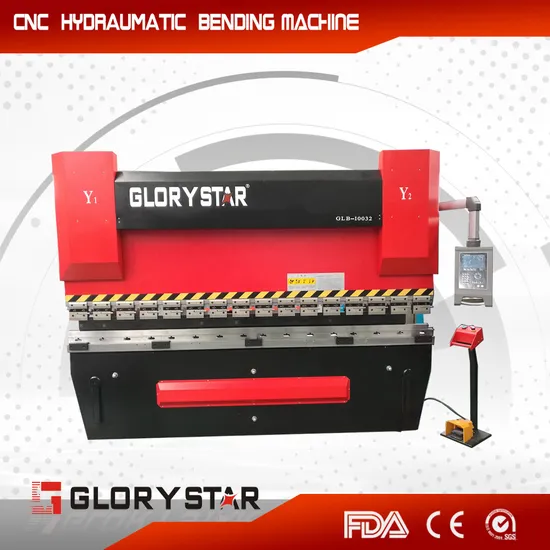

Hydraulic CNC Bending Machine Sheet Metal Bender

Product Description

Hydraulic CNC Bending Machine Sheet Metal Bender
I. CNC Hyraulic Bending Machine Introduction
CNC HYDRAULIC PRESS BRAKE Cybelec controls offer not only failsafe operation of the vital operations of the machine, but also offer the operator considerable assistance in carrying out the entire bending process.
servo-proportional driven machines with micro-electronics ensuring perfect control of the bending process. The position, speed and pressing force of the Ram are controlled in a closed circuit at every point in the work cycle. The position of the Ram is controlled by two digital high precision linear scales. These linear scales are mounted on an independent C-frame on both side of the machine to prevent deformation of the Press Frame for accurate bending depth or bending angle. The system is designed to allow for the programming of Ram tilting without causing any guiding stress.
II. Press Brake Standard Equipment
·Standard 3 +1 Axes with hydraulic crowning
·FastBEND-2D Premium Graphic Control From Cybelec DNC600S
·Omron Infrared Sensor Switches to power off , avoiding damage when people enter to the dangerous area on back of the machine
·Japan Sumitomo Gear Pump
·Germany Bosch Hydraulics
·Increased Daylight Opening
·Panasonic servo motor on Backgaue X axis and R Axis
·Back gauge Finger can be adjust laterally both by hand or by the control button on the top of foot pedal
·Electrical Panel integrated with cooling fan
·Precision Grating ruler from Austria
·European Standard top tooling with Quick Manual Clamping arrangement
III. DNC600 CNC controller from Switzerland

The DNC 600S numerical control with 2D graphic display is specifically designed for sheet metal working. The standard version of the DNC 600S numerical control can control up to 4 axes, of which two are synchronized hydraulic axes, specifically designed for press-brakes.
The large monochrome screen and a simplified keyboard with large keys make the DNC easy to program.
Easy Operating
- Large, vivid and high-contrast 9,4" screen
- 2D Graphic representation of the part, including gauging points
- Clear display of all the information the operator needs
Better Bending
- Complete programming of parts in a single page
- Higher productivity with the 2D graphic display and the easy and rapid modifications of existing products
- Very fine tuning through extensive machine parameters
- Programs can be linked together to create a very high number of sequences
All basic functions available e.g.
- 2D Graphic L-alpha programming
- External or internal flange dimension calculation
- Automatic calculation of the top dead centre
- Deep integration with safety systems (messages, pop up)
- Internal backup of the machine data for immediate on site service/diagnostic
Easy communication
- Connection to your PC / notebook via RS 232
- Updating and data back-up
- Back-up software included
Over 20 languages available
IV. CNC Hydraulic Press Brake Optional
1. Cybelec 2D/3D Offline Software DNC 880S
2. 5 and 6 axes backgauge systems
3. CE Safety Guard
4. Linear Guide Rail for easy move of the front support arm
5. Netherland Delem DA52,DA56 CNC control system
V. Key Components Made by:

No.	Item	QTY	Remarks
1	CNC Controller	1set	CYBELEC DNC880S(Switzland)
2	Servo Motor and Drive	1set	Pansonic(Japan)
3	Main Motor	1Unit	ABB motor(Switzland)
4	Hydraulics	1set	BOSCH(Germany)
5	Ball Screw	2 pcs	HIWIN, Taiwan
6	Linear Way	2 pcs	HIWIN, Taiwan
7	Hydraulic Fittings	1set	PARKER,USA
8	Hydraulic Seals	1set	Japan VALQUA
9	Linear Scale	2 pcs	Heidenhain,Germany
10	Electric Components	1set	Omron,Shneider

Contact Info:
Ms.Joy
Mobile:+8613631703966
Website:glorystarlaser.en.made-in-china.com
FAIR FORCAST:
*The 13th SIGN 2015 SHANGHAI ,Our Booth No.W1 B01 ,Schedule from 16th to 19th ,Sept,2015 ;
**China Inport & Export Fair in Guangzhou Autumn Season,Schedule from 15th to 19th ,Oct,2015;
***China International Industries Fair Metal Working and CNC Machine Tool Show ,Booth No. H2-B-016, Schedule 3rd to 7th ,Nov,2015;
****17th DMP China Dongguan Int'l Mould & Metal Working Exhibition 2015 SOUTH CHINA INT'L SHEET METAL & LASER SHOW ,Booth No.2G31 ,Schedule 18th to 21st ,Nov ;
Warmly welcome your coming to visit us.
Our company has four factories in China ,our main products are fiber laser cutting machine ,Co2 laser cutting machine ,laser marking machine ,laser welding machine and CNC bending machine.We are specially for laser technology for more than 15 years,we have our research and development department. now we have more than 400 employees.
May I know more about your company and your product information?
What is the main material do you want to cut?what is the max thickness of it? What is the industry it will applied to ? looking forward to your early reply .
Many thanks & Best regards.
