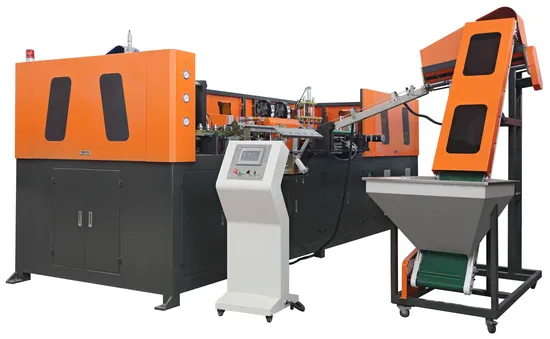

6000bph Automatic Pet Bottle Blow Moulding Machine

Product Description

6000bph Automatic Pet Bottle Blow Moulding Machine
5000-8000 bottles/hour, 6 Cavity
Low c6nsumption of electricity, air and water
6000BPH Automatic PET Bottle Blow Moulding Machine /PET Bottle Blow Machine
Brief Introduction:
Automatic PET Bottle blow molding / moulding machine can blow the maximum capacity of the products is 2L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc
6000BPH Automatic PET Bottle Blow Moulding Machine /PET Bottle Blow Machine
Features:
1. Utilization of automatic central lubrication.
2. Compact space design for convenience of mold conversion, repairing and maintenance. 3. Minimized transfer pitch for increasing heating efficiency and saving energy.
4. Swift exchange design for preform mandrels.
5. Optimized air flow in the oven for stable heating process.
6. Easy to adjust, exchange and access heating oven; Protection for preform thread against heating.
7. Intact rotating robot grip with linear guider for right access, rapid motion; Reducing adjustment and maintenance time.
8. Electronic inspector for ejecting faulty preform and bottles.
9. Fast, safe, and accurate cam-controlled blowing wheel for providing the best bottles.
10. Precise control of blowing technique to produce less-weighted bottle.
11. Smart design for quick conversion of blow mold.
12. Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13. Operating machine through touch panel; Program protected by code lock

General Information	BM-A2	BM-A2	BM-A4	BM-A6
Clamping Force	150KN	180KN	370KN	565KN
Clamping Stroke	120~175mm	120~175mm	120~175mm	80~130mm
Max Strecthing Stroke	370mm	370mm	370mm	370mm
Bottom Moving Stroke	70mm	70mm	70mm	0~70mm
Number of Cavities	1	2	4	6
Theoretical Output	1000BPH	2000BPH	4000BPH	6000BPH
Max Mould Thickness	250mm	250mm	250mm	300mm
Space Between Tie Bras	300*380mm	400*380mm	640*380mm	760*380mm
Voltage Standard	380V 3PH 50Hz or special order
Number of Heating Zone	2 Sections	2 Sections	4 Sections	4 Sections
Total Power	20KW	28KW	60KW	75KW
Max Volume of Contanier	6.0L	1.5L	1.5L	1.5L
Neck Diameter Range	16~38mm	16~38mm	16~38mm	16~38mm
Max Diameter of Contanier	110mm	110mm	110mm	110mm
Max Height of Contanier	380mm	380mm	380mm	360mm
Low Air Compressor	10Bar	10Bar	10Bar	10Bar
High Air Compressor	30~40Bar	30~40Bar	30~40Bar	30~40Bar
Blow Molding Machine	1.8*1.5*2.0m	2.1*1.5*2.0m	2.55*1.5*2.0m	4.25*1.5*2.0m
Preform Auotloader	1.1*1.2*2.2m	1.1*1.2*2.2m	1.1*1.2*2.2m	1.1*1.2*2.2m
Net Weight	1.8T	2.0T	3.5T	4.0T

---
