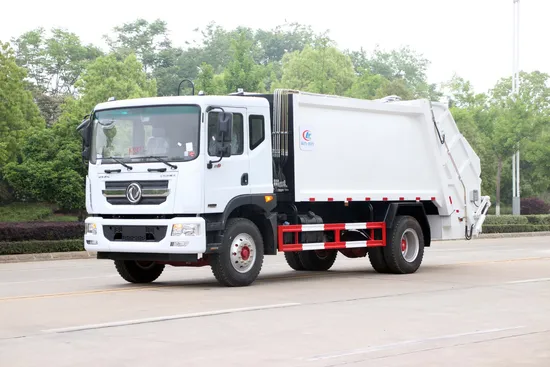

China Dongfeng 12cbm/12000liters Compression Type Waste Garbage Refuse Compactor Truck

Product Description

China Dongfeng 12cbm/12000liters Compression Type Waste Garbage Refuse Compactor Truck
Product Description
1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;
2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;
3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.
4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Product Specification

General Technical Parameters
Overall Dimension			8350*2490*3250(mm)
Gross Vehicle Weight			15800(Kg)
Curb Weight			9850(Kg)
Chassis Specification
Chassis Brand		Dongfeng
Drive model		4*2
Cabin		Single Row, LHD, with air condition, audio system, and USB, etc.
Number of Passengers		2
Engine	Model	Cummins 180HP, 4-stroke direct injection, 4-cylinder in-line, intercooled supercharging, withABS.
	Power	132KW/180HP
	Emission standard	EURO 3
	Displacement	4557(ml)
	Fuel type	Diesel
Gearbox		6Forwards & 1Reverse, manual operation, with power steering.
Brake System		Oil break
Wheel Base		4700mm
Front/Rear Axle Loading		8000/9000(Kg)
Approach/Departure Angle		24/12°
Tire		9.00R20, 6pc with 1 spare tire
Max Driving Speed		98(km/h)

Upperstructure Specification
Compector Box	Box Volume	14CBM
	Box Capacity	8Ton
	Dirty Water Tank Volume	0.2CBM
	Hopper Volume	0.8CBM
	Compression density	0.8-0.9T/CBM
	Compression ratio	3-4
	Compression cycle time	≤15 s
	Unload garbage time	≤23 s
Body Thickness	Side	3mm, Carbon Steel-Q345A
	Bottom	4mm, Carbon Steel-Q345A
The Electromagnetic Valve	UZCT-115/24V, 2sets
Hydraulic Pressure	16Mpa
Controlling Way	Manual and electrical control
Other Configuration	Equipped with hermetic dustbin. Hydraulic system: Hydraulic ejection plate, Hopper, Lifting system, Compression system(sliding plate, scraper board), Receiving system, Loading system. Operating system: Rear operation panel board, Manual operation panel board.
Options	Tail feed flip frame or flip bucket, PLC one-button control system, etc.
