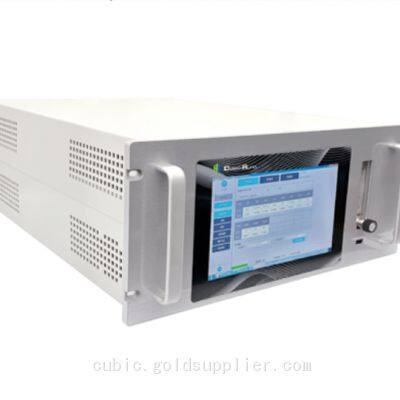

Laser Raman Spectroscopy Gas Analyzer LRGA-3100

Product Details

Product Description

Product Description
Introduction
LRGA-3100 Laser Raman Spectroscopy gas analyzer is independently researched and developed by Cubic Instruments (a wholly-owned subsidiary of CUBIC Sensor and Instrument Co., Ltd). Based on the LRGA-6000--a special product for the development of national significant scientific instruments and equipment, the optical path and structure were optimized to greatly reduce the size of the gas analyzer, so the new generation laser raman gas analyzer is much more compact and transportable. Based on the principle of laser Raman scattering, which enhances, collects, processes and identifies the characteristic Raman scattering spectra of the gas to be measured and quantifies the content, LRGA-3100 can provide online real time measurement for various gases simultaneously with the shortest response time in seconds.
Features
Non-destructive analysis of gases like CO, CO2, CH4, C2H2, C2H4, C2H6, C3H8, H2O, H2S, NH3, iC4, nC4,etc. including homonuclear diatomics like H2, N2, O2.
Real time calculation of gas quality indexes like Calorific value, Wobbe index, etc.
Wide detection range from 0.1% to 100% with high resolution and accuracy.
Fast response time in seconds, suitable for industrial online continuous monitoring.
Strong anti-interference ability based on Laser Raman technology of gas characteristic fingerprint spectrum.
No carrier gas required and no consumables, low operation cost.
Capable of mounting online in harsh process conditions of high temperature and high pressure with proper gas conditioning system.
Specifications

Measurement Components	H2, N2, O2, CO, CO2, CH4, C2H2, C2H4, C2H6, C3H6, C3H8, H2S, Calorific value, Wobbe index, etc.
Measurement Range	0-100% （can be customized based on actual application condition）
Accuracy	≤±2%F.S.
Response Time		Repeatability	2%
Working Temperature	10℃～35℃
Power Supply	100~240VAC, 50~60Hz
Interface	RS-232/RS-485, TCP/IP Ethernet, USB
Dimension	L590*W480*H177(mm)

Applications
• Natural Gas
• Natural gas cracking
• Shale gas
• Mud logging
• Petrochemical
• Coal chemical industry
• Coal to Glycol
• Raw coal gas
• Inlet of pretreatment
• Conversion gas composition
• Ferrous Metallurgy
• Argon blowing in steel ladle
• Mixed gas of Blast Furnace, Coke Furnace and Converter Furnace
• Coke oven gas
• Heating furnace calorific value monitoring
• Coking
• Biomass Gasification
• Tire cracking
• Pyrolysis/gasification
• Rubber gasifier
• Gasification reactor
For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.

---
