Metal Borehole Hydraulic Radial Arm Drilling Machine (Radial Drill Z3040X11/III)

Product Description

Metal Borehole Hydraulic Radial Arm Drilling Machine (Radial Drill Z3040X11/III) Product Description
The main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed Product Parameters
Product main technical parameters:

SPECIFICATIONS	Z3040×11/II
Max.drilling dia (mm)	cast iron 40 / Steel32
Distance from spindle nose to table surface (mm)	220-1180
Distance from spindle axis to column surface (mm)	340-1150
Spindle travel(mm)	270
Spindle taper(MT)	4
Spindle speeds range (r.p.m)	40-1250
Spindle speed steps	6
Spindle feeding range (mm/r)	0.10-0.25
Spindle feeding steps	3
Rocker rotary angle °	±90°
Main motor power (kw)	2.2
Movements motor power (kw)	0.75
Weight (kg)	1600
Overall dimensions (mm)	1550×705×2200

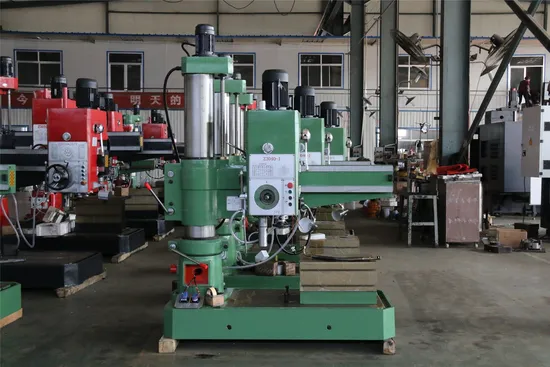

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
