Carrageen and Collagen Ultrafine Impact Pulverizer Milling Machine

Product Description

Product Description Product Description

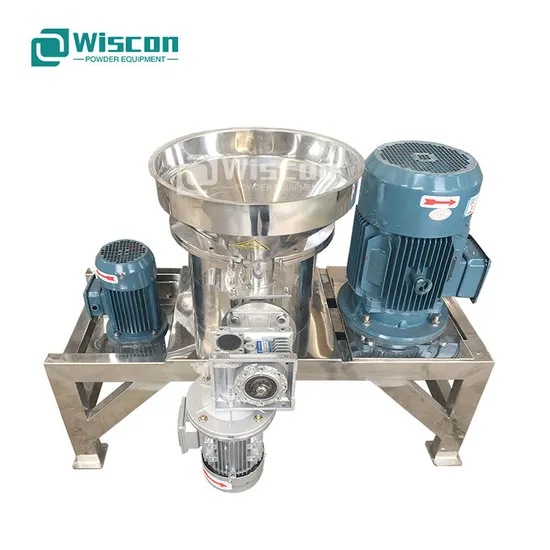

The air classifier mill is mainly suitable for fine milling materials into a fineness of 80-300 meshes. It is an air classifying type with
no screen. The machine is equipped with a grading mechanism, which can complete the crushing and grading at one time. The
negative pressure conveying makes the heat generated in the cavity during the crushing operation continuously discharged,
so it is also suitable for the crushing of heat-sensitive materials. The production process is continuous, and the discharged particle
size is adjustable.
Typical Application
Food: Biscuit, Cocoa press cake, Dried peas, Potato starch, rice, Soy Protein, Sugar, Cocoa, Wheat gluten, Fennel, Cumin, Corn,
Pepper, Soybean meal, Garlic, Pumpkin, Spices, sesame seeds, chili, onion, Ginger, Tea Powder
Pharmaceuticals: Herbal medicine, Analgesics, Laxatives, Anti-convulsant, Gastric reflux, suppressants, Vitamins, Cultures, Aspirin,
Paracetamol
Chemical: Carbonates, Chlorates, Chlorides, Citric Acid, Fertilizers, Fungicides, Gum Arabic, Gypsum, Hexamine, Insecticides,
Metallic Salts, Nitrates, Oxides, Pesticides, Phosphates, Stearates, Talc, Urea Resin
Product Features Features and Benefits
Capable of fine grinding to 300mesh
Designed for soft to medium-hard materials with a Moh's hardness of 3.5 or less
Equipped with an internal classification mechanism, grinds and classifies in one step
Particle size can be adjusted by the speed of the classifier or feed rate
The high volume of airflow is suitable for thermally sensitive materials.
Compact design & dust-free operation.
Quick-release design for quickly cleaning and maintenance.
Optional Features
Low-Temperature control milling applies to heat-sensitive materials.
Explosion-proof and V/F motor for the requirement.
Build Materials and Finish
SS304 Stainless steel with contact parts for standard design.
SS316 Stainless steel and Wear-resistant alloy for grinding media
matt or brushed surface finished
Brittle, crystalline, fibrous, elastic, and other soft to medium-hard materials with a Moh's hardness of 3.5 or less resilient materials,
Product Parameters

Model	Capacity (kg/h)	Feed Size (mm)	Fineness (mesh)	Total Power (KW)	Speed(r/min)
ACM-15	10~150	≤6	80~350	16	~5500
ACM-20	30~200	≤10	80~350	22	~4800
ACM-30	100~800	≤10	80~350	42.5	~3500
ACM-60	500~1200	≤12	80~350	84	~2800

Product Details

Why us Wuxi Wiscon mechanical and Electrical Equipment Co., Ltd. is an integrated company specializing in powder production for the food,
pharmaceutical, chemical, and biological industries since 2016.
Main products categories cover the following equipment:
a. Drying Equipment: rotary atomizer spray dryer, pressure nozzle spray dryer, tray drying oven.
b. Powder Mixer: Conical Screw mixer, Ribbon mixer, Ploughshare Mixer, V-shaped mixer, and Double cone mixer for bulk materials.
c. Vibration Screener: Rotary vibratory Screener, Tumbler Screening Machine, and Centrifugal shifter for fine powder separation.
d. Grinding Machine: Universal Mill, Air Classified Mill for food and Pharmaceutical.
e. Granulating Equipment: High Shear Mixer Granulator and Fluid Bed Granulator
f. Vacuum conveyor: Pneumatic vacuum Feeder for BIC, Bagging machine, powder mixer, sieve, etc.
FAQ Questionnaire for Air Classifier MillIn order to quote you the right air classifier mill price, Please specify as much information as possible- What are the materials to be handled- What is the final desired particle size?
- What is the starting particle size?
- Is the material friable?
- Is the material sensitive to heat?
- What is the maximum allowable temperature during milling?
- Is the material abrasive?

---
