Cogged Wrapped Banded Timing Belt V Belt

Product Description

QINGDAO HYROTECH RUBBER & PLASTIC PRODUCTS CO.,LTD
HYROTECH Strength

1.Competitive Price

2.Only produce high quality products

3.Raw Material quality strictly checked before production
4.Various tests before shipping to make sure stable quality

5.Very fast delivery time
Product Introduction

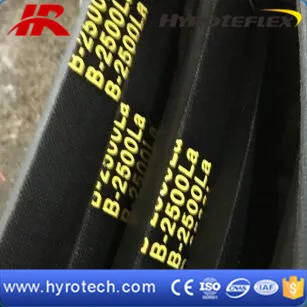

Wrapped V-belt /Classical V belts Applicability:
Classical V-belts are often produced according to standard DIN2215 for multitude application possibilites.
Narrow V belts are produced according to DIN7753 for compact, high horsepower drives and high shock loading on short centers and small diameters
Sections:

TYPE	Top Width mm	Pitch Width mm	Height mm	Length Range mm	Angle
Z/M	10	8.5	6	280-2480	40°
A	13	11	8	330-8000	40°
B	17	14	11	457-17000	40°
C	22	19	14	700-17000	40°
D	32	27	19	1100-17000	40°
E	38	32	23	3300-17000	40°

TYPE	Top Width mm	Pitch Width mm	Height mm	Length Range mm	Angle
3V(9N)	9.5	/	8	375-3353	40°
5V(15N)	16	/	13.5	795-17000	40°
8V(25N)	25.5	/	23	2500-17000	40°
SPZ	10	8	8	375-3353	40°
SPA	13	11	10	475-7200	40°
SPB	17	14	14	750-17000	40°
SPC	22	19	18	1350-17000	40°

Qingdao Hyrotech Rubber & Plastic Products Co., Ltd
Company introduction
Hyrotech is a leading manufacturer & exporter of rubber belts in China for more than 10 years.
W have exported our V Belts more than 60 countries,including USA, Italy, Spain, Peru, Chile, Colombia, Argentina, Brazil, etc.
Factory Show
Our factory covers an area of 20000 square meters workship with a total invest ment up to RMB 100 million.
We own 100 sets of different equipment for production, testing and employ more than 200 staffs, including 15 technicians.
Contact us
We are waiting for you, please feel free to contact us. We will produce stable and high quality product for you.

---
