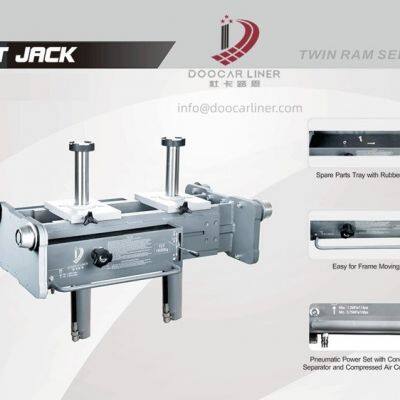

TGD-200 twin ram air hydraulic pit jack

Product Details

Product Description

Product Description
TGD-200 pit jack is twin ram air hydraulic pit jack that is designed and manufactured by Doocar Liner. The hydraulic pit jack features:
1.Standard air hydraulic twin ram pit jack.
2.Two independently controlled cylinder heads allow for safe and balanced lifting.
3.Speed reduction valve
4.Precision air hydraulic components (with fast-moving cylinders).
5.Lateral movement cylinder head
6.The height of jack is adjustable according to actual demand.
7.The rack can be adjusted to meet all lift.
8. The pit jack has wide applicability and can be used for lifting beams, gearbox bases, supporting bridges, etc.
Equipped with two 100MM height increasing pads.
Specifications

capacity	air pressure	stroke	min height	max height	width L1	lifting L2	depth	L1 option	L2 option
20 T	0.75-1.2Mpa	420mm	576	996mm	600-1400mm	200-1150mm	665mm	600-800 840-1140 1100-1400	200-630 200-890 200-1150

---
