China 30ton 30m-48m Syg5370thbs 430c-10 Concrete Pump Truck with Output 200/137 Cbm/H

Product Description

Product Description

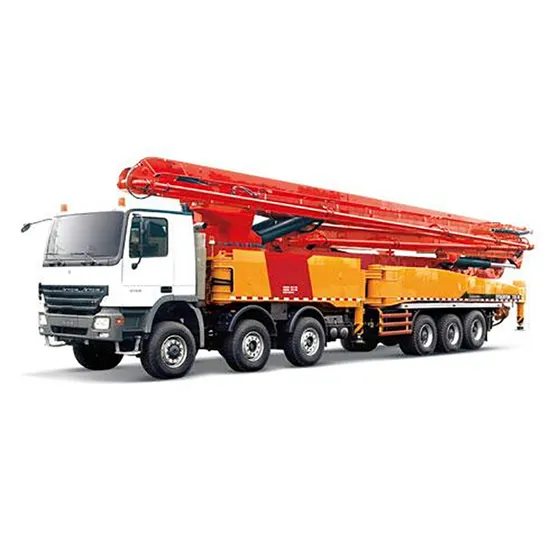

I Pump Truck SYG5370THBS 430C-10
Truck-Mounted Concrete Boom Pump is a convenient and efficient dedicated construction machinery for transporting and concreting concrete, which has features of short construction period, large spreading range, low labor strength and operation in confined space. It is widely used in high-rise construction, underground construction and large concrete construction.

I Highly Reliable
· · International authoritative-certificate lighthouse factory & world-class manufacturing capability
· · Optimized essential parts with ultra-high-strength steel
· · Open hydraulic system & high configuration
· · Stable signal & precise control
I Strong Pumping
· · A 10% increase in pumping efficiency
· · smoother flow, less blockage, and meet long-time pumping need
· · Dual-purpose machine: quickly transforms into a line pump
· · Various boom types & flexible working posture
· · Less site limitation, smaller footprint, more comprehensive placement range
I Extremely Economical
· · Advanced fuel combustion & intelligent power matching technology
· · The best cost performance choice
· · Easy maintenance, cost-saving and time-saving
· · The industry-leading most extended service life of wear parts
I Ultimate User Experience
· · High configuration cab & exceptionally comfortable driving experience
· · Single-button operation design and optimized flow of the entire process
· · MachineLink+ & all in your control
· · 24/7 rapid troubleshooting & spare parts supply guaranteed.

Product Parameters
Truck-mounted Concrete Pump
SYG5370THBS 430C-10
Vertical Reach: 42.5
Output: 125 m³/h
Pressure: 32 MPa

Model		Unit	SYM5370THBFS 430C-10
Length		mm	11705
Width		mm	2550
Height		mm	3970
Total weight		kg	30000
Vertical reach		m	42.5
Horizontal reach		m	37.7
Reach depth		m	33.2
Unfolding reach		m	11
1st section	Length	mm	8112
	Articulation		89°
2nd section	Length	mm	6300
	Articulation		180°
3rd section	Length	mm	6924
	Articulation		180°
4th section	Length	mm	8542
	Articulation		230°
4th section	Length	mm	8636
	Articulation		210°
Rotation			±360°
Outrigger spread L-R---front		mm	8400
Outrigger spread L-R---rear		mm	7700
Output	Low-pressure	m³/h	125
	High-pressure	m³/h
Pressure	Low-pressure	Mpa	10
	High-pressure	Mpa
Delivery cylinder diameter		mm	230
Stroke length		mm	1600
Hydraulic system			Open
Hydraulic system oil pressure		Mpa	32
Oil tank capacity		L	625
