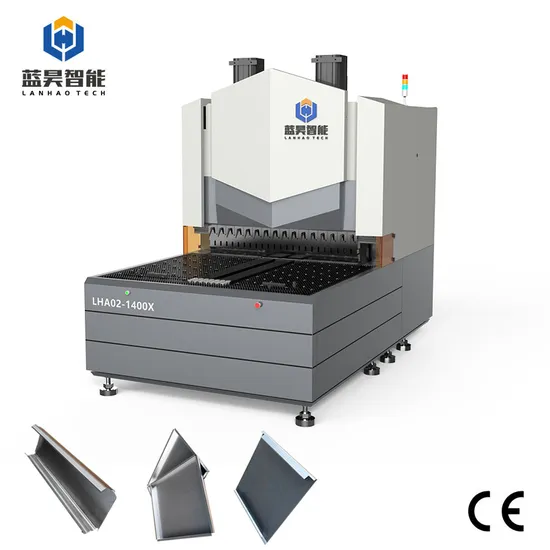

Suction Cup Basic 9 Axis Functional Lanhao Panel Bender

Product Description

Easily realize the bending requirements of arc, dead edge, return type, closed type and other complex types of sheet metal.
Lanhao flexible bending center can be widely used in the field of steel cabinet housing (file cabinet, tool cabinet, outer shield, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet......) , kitchenware (refrigerators, air conditioners, cooking appliances...) , furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related metal forming fields.

Items	LHA-1000XC	LHA-1400XC
Max bending speed	0.2 second /time	0.2 second /time
Max. bending width	1000mm	1400mm
Bending height	170mm	170mm
Rated voltage	380v	380v
Total Motor power	about 27Kw	about 36Kw
Average power	about 1.2Kw	about 1.6Kw
Machine size	about 285*150*280cm	about 365*190*290cm
Total machine weight	about 7t	about 10t
Max. bending thickness (thicker panel customizable)	UST 515N/mm2 201 stainless steel 0.8mm	UST 515N/mm2 201 stainless steel 0.8mm
	UST 515N/mm2 304 stainless steel 1.0mm	UST 515N/mm2 304 stainless steel 1.0mm
	UST 410N/mm2 cold panel 1.2mm	UST 410N/mm2 cold panel 1.2mm
	UST 515N/mm2 aluminum panel 1.6mm	UST 515N/mm2 aluminum panel 1.6mm
Minimum material thickness	about 0.35mm	about 0.35mm
Four sides forming minimum inner size	about 140*210mm (only for replaceable suction cup)	about140*210mm(only for replaceable suction cup)
Two sides forming minimum inner side	about 140mm	about 140mm
Max. bending size	about 1000*1000mm	about 1400*1400mm

Process description:
High grade castings
The core frame of the equipment adopts high grade QT500-7 and HT250 castings, and the grade of the castings is measured by the testing instrument. Through precise finite element analysis, the frame adopts stable triangular interconnection design, which greatly ensures the stability under high tonnage impact force.
High standard welding
Carbon dioxide protection welding is adopted in the whole welding process, and full welding process is adopted at the welding place to ensure that the welded workpiece is firm and beautiful.
Stress relief treatment
The supporting table of casting and welding adopts high-precision temperature-controlled furnace, and carries out heat treatment processes such as tempering and annealing for many times according to the corresponding temperature curve of the material, and then carries out the full-frequency vibration aging treatment for a long time, so as to release the internal stress of the workpiece and keep it from deformation after long-term use.
Precision machining
Different fixtures are designed for different workpieces. High precision multi-axis machining center is used to finish the workpieces to ensure the consistency of the accuracy before and after clamping.
Strict inspection
Using high precision micrometer U table, with long service life of marble platform and marble square feet, for each workpiece for precise measurement, strictly control the processing quality of each workpiece, layer upon layer check, so that the assembly accuracy of the machine meets the standard of high precision machine tools.
Application show:
Lanhao flexible intelligent bending center can easily meet the bending requirements of arc, dead edge, return type, closed type and other complex types of sheet metal.

---
