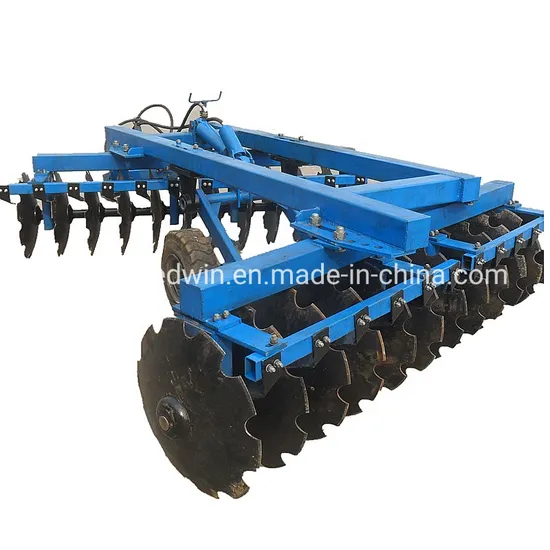

Tractor Heavy Duty Offset Disc Harrow with Strong Bearing Combination

Product Description

Tractor heavy duty offset disc harrow with strong bearing combination
Basic info
Condition:New
Type:Farm Cultivator
Power Type:Diesel
Machine Type:Disc Harrow
Warranty:1 years
Use:Breaking hardend surface and cutting up straws
Place of Origin:Shandong, China
Brand Name:Customized
Weight:1500 KG
Dimension(L*W*H):4888*2878*1340mm
Key Selling Points:High Productivity
Marketing Type:New Product 2020
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:disc blade, square shaft
Applicable Industries:Farms
Showroom Location:None
After-sales Service: Provided
Supply Ability:800 Sets per Month
Packaging Details:iron case or as your demand.
Port:QINGDAO CHINA
Product Description
{heavy duty offset disc harrow} Disc harrow description :
1BQX series are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.
Specification
{heavy duty offset disc harrow} 1BQX series light duty disc harrow specification is as following :

Model	1BZ-1.8-40	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.2	1BQ-3.4
Working width (mm)	1100	1300	1500	1700	1900	2200	3400
Working depth (cm)	10-14	10-14	14-16	14-16	14-16	14-16	16-18
No, of disc (pcs)	12	14	16	18	20	24	42
Diameter of disc (mm / inch)	460/18	460/18	460/18	460/18	460/18	460/18	460/18
Weight (kg)	200	220	240	260	290	350	1100
Matched power (hp)	12-15	15-18	25-30	30-35	35-40	55-60	80-100

{heavy duty offset disc harrow} 1BJX series Middle duty disc harrow specification is as following :

Model	1BJX-1.3	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Working width (mm)	1300	1600	1800	2000	2200	2400	2500
Working depth (cm)	12-16	14-16	16-18	18-20	18-20	18-20	18-20
No, of disc (pcs)	12	14	16	18	20	22	24
Diameter of disc (mm / inch)	560/22	560/22	560/22	560/22	560/22	560/22	560/22
Weight (kg)	330	370	400	440	465	520	760
Matched power (hp)	35-40	40-45	45	50-55	55-60	60-65	75-100

{heavy duty offset disc harrow} 1BZ series heavy duty disc harrow specification is as following :

Model	1BZ-1.8	1BZ-2.0	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-3.8
Working width (mm)	1800	2000	2200	2500	3000	3400	3800
Working depth (cm)	20-25	20-25	20-25	20-25	25-28	25-30	25-30
No, of disc (pcs)	16	18	20	24	28	32	36
Diameter of disc (mm / inch)	660/26	660/26	660/26	660/26	660/26	660/26	660/26
Weight (kg)	1150	1250	1350	1500	1600	1800	2100
Matched power (hp)	60-70	70-80	80-90	90-100	100-120	120-140	140-180

---
