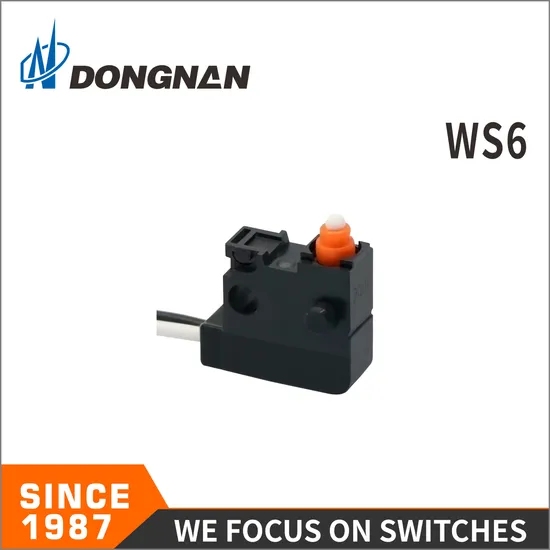

Ws6 Waterproof Micro Switch for Air Conditioner Cabinet of Household Appliances

Product Description

Internal configuration drawing
1.To be stably sealed by sealed rubber ring and epoxy resin. Can be used in wet or dusty places.
2.Switch over travel more than 2mm.
3.Mute structure of sliding contact.
4.A variety of contact terminals, provide with a variety of wires.
5.A variety of levers.
6.It can be used in environmental resistant requirements applications such as automobile , agricultural machinery , large home appliances , office equipment etc. Product show
Technical characterictics

Item	Value
Environment temperature	-40~+85°C
Operating speed	30mm~600mm/s(no lever)
Operating frequency	Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance	≥100MΩ(500VDC)
Contact resistance	≤500mΩ
(Test voltage) Between terminals of the same polarity	AC600V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-current-carrying metal parts.	AC1500V , 50/60Hz , 1min
Vibration resistance	10~55Hz , 1.5mm double amplitude
Shock resistance	endurance:1000m/s2(approx.100G)max Wrong action:300m/s2(approx.30G)max
Electric shock proof protection grade	I class
Degrees of protection provided by enclosure	IEC IP67(Besides terminal part of terminal type)Or other grades
Electrical Life	≥500,000 cycles (1mADC5V,50mADC16V) ≥200,000 cycles (50mADC 30V)

Company Profile
DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries.
At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system. Company information
Exhibition
Certifications
FAQ
Q1.Compared with others, how is your price?
Our switch quality is guaranteed, the price is the factory price, no middlemen, good quality, good price.
Q2.How many square meters of your factory?
Our new factory is about 74,336 square meters
Q3.Does your product meet ROHS standards?
Yes, we meet ROHS standards
Q4.What Quality Assurance System does your factory pass?
GB/T19001-2008, ISO45001:2004, BSOHSAS18001:2007, QC080000 , IATF 16949
Q5.Do we have chance to be your dealer?
If your company can meet the conditions, we will evaluate and apply for you to be our dealer.

---
