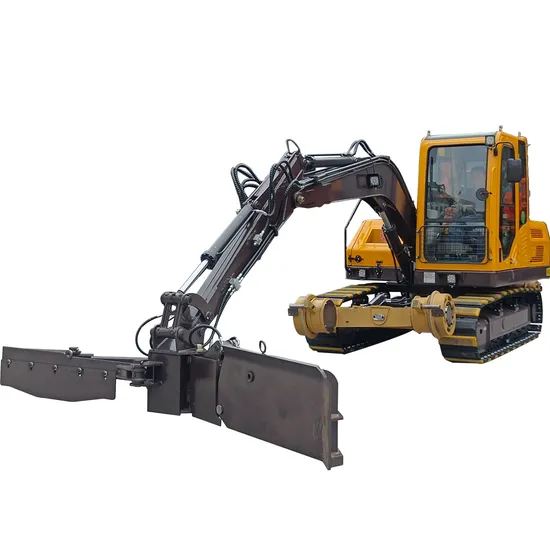

Advanced Self-Propelled Machine Ballast Grader Spreads Ballast Evenly and Produces Ballast Profiles on The Track

Product Description

Our company abides by the business philosophy of "quality first, customer first" to ensure product quality.
We have rigorous production procedures, and each production process is carried out under strict quality inspection.
Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat,
clean and safe working environment.

SPECIFICATIONS
RANGE OF OPERATION			Boom length				3300mm
			Arm length				1850mm
			Maimum digging force				45KN
			Back-end radius of gyration				1980mm
BALLAST TAMPING ATTACHMENT			Vibration frequency				35HZ~63HZ
			Exciting force				≥21KN
			The maximum insertion depth of the pick body (the bottom of the concrete sleeper)				≥90mm
			Angle of rotation				45°
			Working efficiency				55-60pcs sleepers /H
DIMENSION			(Length*width*height) travel position				6100*2800*2650mm
			Roller gauge				2600mm
			Track Gauge				1570mm
			Width Of Crawler				400mm
			Ground clearance of counterweight				780mm
			Min ground clearance				280mm
TECHNICAL PARAMETERS			Applicable railway gauge				1435mm(customizable)
			Angle of rotation				360°
			Machine weight				8000~8500kg
			Engine model				YUCHAI
			Rated Power				48~62.5KW
			Rated Speed				2200r/min
			Fqt Fuel Quantity				≥4L/h
			Capacity Of The Fuel Tank				110L
			Hydraulic Tank Capacity				110L

We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters,
sugarcane grab loaders,multi-function excavators.
We have nearly 20 years of professional experience, and our products have been exported to many countries.

---
