Product Details
Product Description
Product Description
Mechanical carbon seal has a long history. Graphite is an isoform of element carbon. In 1971, the United States studied the successful flexible graphite sealing material, which solved the leakage of atomic energy valve. After deep processing, the flexible graphite becomes an excellent sealing material, which are made into various carbon mechanical seal with the effect of sealing components. These carbon shaft seal are used in chemical, petroleum, electric power industries such as high temperature fluid seal.
Because the flexible graphite is formed by the expansion of expanded graphite after high temperature, the amount of intercalating agent remaining in the flexible graphite is very small, but not completely, so the existence and composition of the intercalation agent have a great influence on the quality and performance of the product.
Selection of Carbon Seal Material
The original inventor used concentrated sulfuric acid as oxidant and intercalating agent. However, after being applied to the seal of a metal component, a small amount of sulfur remaining in the flexible graphite was found to corrode the contact metal after long term use. In view of this point, some domestic scholars have tried to improve it, such as Song Kemin who choosed acetic acid and organic acid instead of sulfuric acid. acid, slow in nitric acid, and lower the temperature to room temperature, made from a mixture of nitric acid and acetic acid. By using the mixture of nitric acid and acetic acid as the inserting agent, the sulfur free expanded graphite was prepared with potassium permanganate as oxidant, and acetic acid was slowly added to nitric acid. The temperature is reduced to room temperature, and the mixture of nitric acid and acetic acid is made. Then the natural flake graphite and potassium permanganate are added to this mixture. Under constant stirring, the temperature is 30 C. After reaction 40min, the water is washed to neutral and dried at 50~60 C, and the expanded graphite is made after high temperature expansion. This method achieves no vulcanization under the condition that the product can reach a certain volume of expansion, so as to achieve a relatively stable nature of the sealing material.

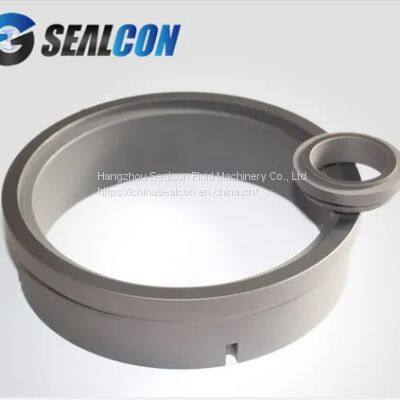

Specification of Carbon Ring Seal
Sealcon can produce different carbon ring seals according to different customers’ requirement.
model
| M190T
| M106K
| M180K
| M106D
| M160C
| M160B
|
material
| pure graphite
| furan resin
| furan resin
| antimony carbon
| copper alloy
| Babbitt alloy
|
density (g/cm3)
| 1.8
| 1.65
| 1.8
| 2.3
| 2.4
| 2.4
|
Fractural strength
| 100
| 65
| 80
| 65
| 80
| 65
|
(MPa)
|
compressive strength (MPa)
| 250
| 230
| 240
| 200
| 250
| 160
|
Shaw hardness
| 92
| 90
| 90
| 80
| 75
| 60
|
porosity (%)
| 1.2
| 1.5
| 1.2
| 2
| 2.5
| 8
|
Coefficient of heat
| 5.5
| 5.5
| 5.5
| 5.5
| 6
| 5.5
|
expansion (1/℃)
|
temperature (℃)
| 600
| 210
| 210
| 350
| 350
| 200
|
medium
| concentration%
| pure graphite
| furan resin
| antimony
| copper alloy
| Babbitt alloy
|
hydrochloric acid
| 36
| +
| 0
| -
| -
| -
|
sulfuric acid
| 50
| +
| 0
| -
| -
| -
|
sulfuric acid
| 98
| +
| +
| -
| -
| -
|
nitric acid
| 50
| +
| 0
| -
| -
| -
|
nitric acid
| strong
|
| -
| -
| -
| -
|
hydrofluoric acid
| 40
| +
| 0
| -
| -
| -
|
phosphoric acid
| 85
| +
| +
| -
| -
| -
|
chromic acid
| 10
| +
| 0
| -
| -
| -
|
acetic acid
| 36
| +
| 0
| -
| -
| -
|
sodium hydroxide
| 50
| +
| +
| -
| -
| +
|
potassium hydroxide
| 50
| +
| 0
| -
| -
| +
|
sea water
|
| +
| +
| +
| +
| +
|
benzene
| 100
| +
| 0
| +
| +
| -
|
ammonia
| 10
| +
| +
| +
| +
| -
|
acetone
| 100
| +
| +
| +
| 0
| +
|
carbamide
|
| +
| +
| +
| 0
| -
|
carbon tetrachloride
|
| +
| +
| +
| +
| +
|
oil
|
| +
| +
| +
| +
| +
|
gasoline
|
| +
| +
| +
| +
| +
|
+ stable - unstable 0 middle (between stable and unstable)
Hangzhou Sealcon Fluid Machinery Co., Ltd is a professional carbon seal ring manufacturer, we provide china agitator, high quality mechanical seal and etc. For more information, please feel free to contact us!
>>
