High-Quality Metal Fresadora Bt40/8000rpm Spindle Nc Intelligent Metal Milling Machine 5kj-B

Product Description

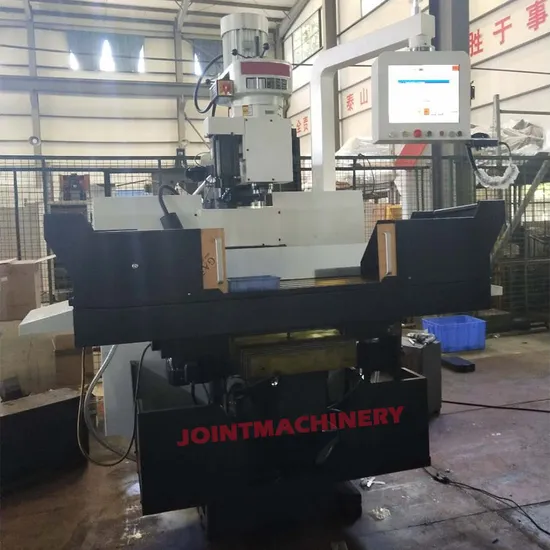

NC Intelligent Milling Machine - Introducing the Ultimate Universal Milling Machine Replacement!
√ Experience effortless manual operation with our innovative split electronic handwheel, designed for maximum ease and efficiency.
√ Harness the power of a Windows-based platform to elevate our intelligent machine system, offering an exceptionally user-friendly application experience.
√ Enhanced milling head precision: driven by a servo motor for Z-axis automatic control, ensuring meticulous processing accuracy.
√ Precision-enhancing ball screw technology employed in X/Y/Z axes, adept at pitch compensation for exact positioning.
√ Experience the cutting-edge with servo motor-driven X/Y/Z axes, enabling three-axis automatic control that significantly boosts feed speed and machining accuracy.
1. WORKTABLE
Our worktable is the epitome of superior craftsmanship, featuring ultra-audio quenching and precision grinding. Meticulously scraped guides ensure ultimate smoothness, while a rotary table enhances its remarkable multifunctionality.
2. TURRET MILLING HEAD
Our advanced turret milling head offers exceptional versatility, designed to swivel 45° forward-backward and rotate 90° left-right, seamlessly tackling intricate angles with remarkable ease.
3. SPINDLE
Outfitted with a high-precision R8/NT30/NT40 spindle, our machine achieves an extraordinary spindle runout of just 0.003mm, guaranteeing unparalleled precision and reliability.
4. X/Y/Z AUTO FEED
Revolutionize your workflow with our automatic X/Y axis feed and electric Z-axis lift, substantially boosting efficiency while simplifying operations.
5. DRO
Attain unmatched precision with our customizable 2-axis or 3-axis DRO, engineered to your precise specifications for enhanced overall performance.
High-Quality Metal Fresadora BT40/8000RPM Spindle NC Intelligent Metal Milling Machine 5KJ-B

Model				5KJ-B
Table size			mm	1473*320
T slot (W*N*D)			mm	16*3*75
X axis travel			mm	950
Y axis travel			mm	420
Z axis travel			mm	430
Knee travel			mm	380
Max distance between spindle and table			mm	-
Spindle rated power			HP	7.5HP
Spindle taper				BT40
Rotation speed			rpm	8000
Rapid feed (X/Y/Z)			m/min	20/20/20
Cutting feed			m/min	8
Dimension			mm	1900*1900*2800
Net weight			kg	1600

Shenzhen Joint Machinery Co., Ltd. stands as a titan in the global machinery industry, acclaimed for our unmatched proficiency in the fabrication and export of CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes. Our distinguished selection of high-caliber milling and grinding machines underscores our steadfast dedication to providing exceptional machinery and unparalleled services worldwide. By fusing pioneering Taiwanese and German technologies, we ensure that our production processes yield superior quality and reliability, conforming to the highest industry benchmarks. Celebrated for their exceptional performance in precision, stability, and dependability, our machines adeptly navigate a broad spectrum of intricate machining tasks. Our illustrious products enjoy international renown, seamlessly penetrating markets across Asia, Europe, South America, North America, and more. Committed to fostering enduring partnerships with clients around the globe, we consistently deliver significant business value together.

---
