Water Supply Equipment for Living for Fire

Product Description

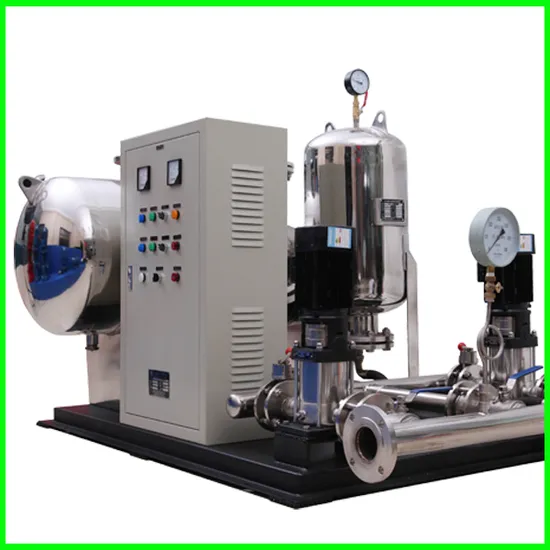

PRODUCT NAME: Water Supply Equipment with No Negative Pressure
In order to make the equipment performance to be more perfect, We developed a new generation of the network pressure superposed water supply equipment in the original technique based on LZW (III) type pipe network pressure superposed (non negative) frequency conversion water supply equipment.
Range of use:
1. In order to adapt to the social development with the improvement of the living standard and qualit.
2. Additive pipe pressure (negative pressure) water supply equipment emerge as the times require, the device makes full use of the municipal pipe network pressure superposition, pressurized water supply, .
3. Superposition of pressurized water supply, small occupation of land, energy saving and environmental protection.
4. Tank structure superposed pressure (without negative pressure) water supply equipment long time over the municipal pipe network water supply operation condition of water use in the user, because the regulating tank storage capacity is limited, can not guarantee the normal water use of users, as well as the municipal pipe network short water, be no water available to the problem, in order to make the equipment performance to be more perfect, the company in on the base of original technology developed a new generation of the network pressure superposed water supply equipment of BW (III) type pipe network pressure superposed (non negative) frequency conversion water supply equipment.
Working conditions:
1. Environment temperature: 4 Centigrade ~40 Centigrade
2. Relative humidity b): <90% (20 Centigrade), outdoor allow 95%, without dew;
3. Vibration: <0.5g, vibration frequency 10Hz~150Hz, the maximum acceleration should not exceed 5m/s2;
4. Tilt: <5 °
5. Frequency: 50 Hz ± 5%;
6. Power supply voltage: 380V ± 10%;
7. Altitude: Not more than 1000m;
8. Equipment operation site should be no conductive or explosive dust, non corrosive metal or gas insulation failure or steam;
9. Pressure precision: <0.01Mpa;
10. Ressure range: 0~2.0Mpa J);
11. Flow range: 0~600m3/h

fault phenomenon	failure cause	elimination methods
	1.No power supply or one or two phase power supply is needed	Check all phases of power supply and restore power supply
	2.Poor contact of ac contactor and burning of coil	Repair or replace contactors
can not start	3. The power switch is not closed, malfunction or damaged	Close the switch and replace it if the power indicator does not turn on
	4. Thermal relay trip or damage	Check whether the motor is blocked, find out the reason and eliminate it.Manual reset is replaced if it cannot be started
	Water level is too low	Put water in the sink
	The motor burned	Repair or replace the motor
	1.Line is loose	Check wiring and tighten connectors
	2.Frequency converter malfunction	Check the fault content, check the cause according to the frequency converter manual, and restart after reset.Or disconnect the inverter power supply for a few seconds, the inverter fault reset before starting.
The manual is normal	3The frequency converter is damaged	Repair or replace
Automatic transmission failure	4.Pressure switch damage	Repair or replace
	5The pressure transmitter is damaged	Repair or replace
	6.Switch failure	Repair or replace
Pump non - suction pressure gauge pointer to beat violently	Insufficient water supply for perfusion, air leakage at the connection between pipeline and instrument	Check pipeline and bottom valve, refill water diversion. Tighten air leakage
The pump consumes too much power	Too much flow, impeller wear	Check whether the pump shaft is bent, replace the impeller, close the outlet valve to reduce the flow

---
