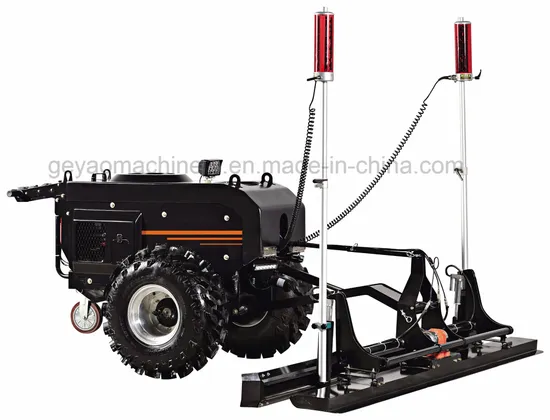

Laser Screeding Machine for Concrete Finishing and Leveling Gyl-260e

Product Description

Laser Screeding Machine for Concrete Finishing and Leveling GYL-260E
Features and Advantages:
1.Screeds flat, single, or dual slopes
2.Increase productivity
3.Fewer work comp injuries
4.Minimal physical effort
5.Remote grade adjustment
6.Vibrator soft start
7.Quick disconnect head assembly
8.Advanced laser system improve FL numbers
9.Full-featured control panel for easily manipulated
10.Anti-skid type puncture for long life serve
Specification:

Model	GYL-260E	GYL-300E
Engine Type	Honda Generator	Honda Generator
Power Kw(hp)	4.8/6.5	4.8/6.5
Weight(lbs)	367(808)	367(808)
Oil Tank Capacity(L)	18	18
Screed Head Width(m)	2600	3000
Self Propel	Standard	Standard
Auto Level	Standard	Standard
Laser System	German MOBA+Leica,or Topcon	German MOBA+Leica,or Topcon
Drive Unit	Mitsubishi HF-SP series servo motor	Mitsubishi HF-SP series servo motor
Electric Control System	Mitsubishi FX3U series PLC	Mitsubishi FX3U series PLC
Vibration Control System	High speed and small torque motor	High speed and small torque motor

Confirguations:
Type: mechanical-hydraulic driving style;
Engine: Honda GX690, electric start 3600 / 24HP horsepower;
Battery circuit: all cars equipped with 12V DC voltage generator 18 amps;
Optional laser system: the United States or Germany MOBA + Leica Trimble;
Vibration Control: US INDCOM company imported high-speed hydraulic motor;
Steering: Hydraulic power steering control;
Drive system: the original brand-name hydraulic hydraulic drive motor;
Walking System: four-wheel drive, closed system, manual adjustment;
Standard tires: 80/100 × 21 motorcycle tire puncture

---
