Specialized Production Copper Mould Tube Copper for CCM

Product Description

I.Specification
1. Copper Mould Tube For CCM
2. Professional Manufacturer
3. High Efficiency
4. Best Service
II.Product Description

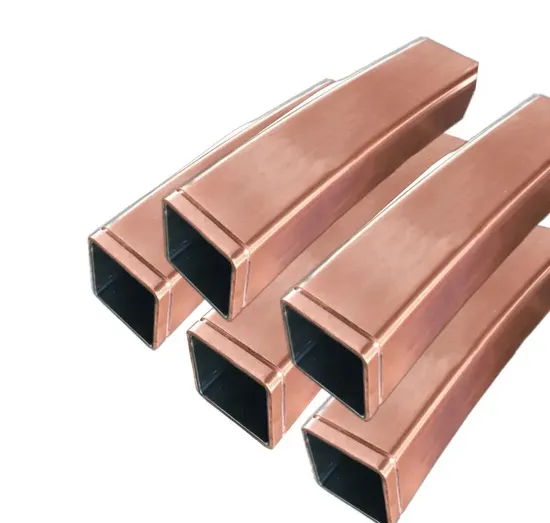

Copper Mould Tube for CCM

At present,Deoxidized phosphorus copper (TP2),silver bearing copper,(CuAg0.1)and Cu-Cr-Zr are normally selected as the material to produce copper mould tubes.
A.Parameters

Material	Phosphorus Deoxidized copper, Ag-Cu,Cu-Ar-Zr
Tapering	single taper,double taper,triple taper,quadruplicate taper,parabolic taper and various kinds of continuous taper
Wall Thickness	6-30mm
Specification	rectangular copper mould tube 135*430mm~365*600mm square copper mould tube 60*60mm~700*700mm round copper mould tube Φ80mm~Φ90mm
Length	800~1000mm
Arc Radius	4000~12000mm

B.Application

Copper moulds have played an important role in the development of the continuous casting process.
Their function is to receive the molten steel and to allow rapid heat transfer from the steel to the cooling water to enable quick solidification. The mould must exhibit excellent thermal conductivity, be resistant for thermal erosion, and be resistant to distortion from thermal stress. So far only copper and a few copper alloys meet the above conditions, both economically and technically.

C.Types

Types	Size	Camber Radius	Thickness	Length
Square	50x50-500x500	4000-17000	6-50	700-1000
Rectangular Tubes	100x340-500x650	4000-17000	6-50	700-1000
Round Tubes	110-1200	5000-17000	10-50	700-1000
H-beam Tubes	70x50-120x520	6000-17000	12-50	780-1016
Non-standard Tubes	70x50-120x520	6000-17000	12-50	780-1016

III. Packaging
IV. Our service
1. We can supply high quality and durable copper mould tube with most competitive price and prompt delivery.

2. Our copper mould tube meet ISO9001 standards, high precision and meet hardness requirement, prefect taper and coated layer.

3. We have complete facilities to process every copper mould tube.

4. We have manufacture thousands pieces of copper mould tube every month and supply several biggest steel group in China which proved that our product is most trusted and satisfied by our customers.

V. FAQ:
1.Are you a factory or trading company?
Factory
2.What is the terms of payment?
T/T L/C at sight
3.Why should you choose our company?
a. Our company is a direct supplier.
b. With professional and technical personnel, first-class service personnel.
c. Reasonable price and best quality

---
