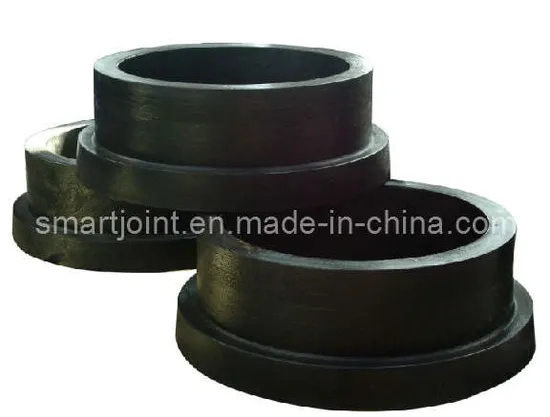

HDPE Fittings-Flange Stub up to 1600mm with Australian Watermark& Standardmark

Product Description

Smart Joint developped full lines of PE flange stub from 40mm up to 1600mm with SDR11, SDR17, SDR21 and SDR26.
Australian short stub end, South African short stub end, Thailand short stub end, all up to 1600mm, ASTM( USA) in both IPS and DIPS up to 36" in SDR9, SDR11, SDR17.
Australian stub end are certified by watermark& standardmark.
PE flange stub is used for PE pipe conneting.
With good sealing performance, easy construction, PE flange stub can protect the flanges well. It is widely adopted in water supply pipe, minning area, in particular suitable for negative pressure coal mine pipe connection.
Investment of unique euqipment for flange stub production enhances the working efficiency and solve the bubble problem during the injection.

Code	Product Name	Size	SDR	Weight	Packing Size(mm)	pcs/box	B	L	t	A	C
BFFL40A	Flange Stub	40	11	69	420*340*420	70	80	50	7	78	50
BFFL50A	Flange Stub	50	11	102	420*340*420	65	94	64	7	86	61
BFFL63A	Flange Stub	63	11	187	420*340*420	60	93	75	8	102	75
BFFL75A	Flange Stub	75	11	263	420*340*420	50	103	73	10	122	89
BFFL90A	Flange Stub	90	11	453	420*340*420	36	125	80	12	138	105
BFFL110A	Flange Stub	110	11	675	420*340*420	18	140	95	15	158	125
BFFL125A	Flange Stub	125	11	716	420*340*420	15	135	95	17	158	132
BFFL140A	Flange Stub	140	11	988	420*340*420	12	130	89	20	188	155
BFFL160A	Flange Stub	160	11	1599	420*340*420	10	126	73	21	212	175
BFFL180A	Flange Stub	180	11	1488	420*340*420	10	140	115	25	212	180
BFFL200A	Flange Stub	200	11	2791	420*340*420	4	174	113	27	268	232
BFFL225A	Flange Stub	225	11	2988	530*440*330	4	161	95	31	268	235
BFFL250A	Flange Stub	250	11	4315	530*440*330	4	173	103	34	320	285
BFFL280A	Flange Stub	280	11	4493	530*440*330	4	173	111	38	320	291
BFFL315A	Flange Stub	315	11	6231	530*440*330	2	175	133	43	370	335
BFFL355A	Flange Stub	355	11	8569			175	98	48	430	373
BFFL400A	Flange Stub	400	11	11118			175	137	54	482	427
BFFL450A	Flange Stub	450	11	17875			175	63	61	585	514
BFFL500A	Flange Stub	500	11	17471			176	78	68	585	530
BFFL560A	Flange Stub	560	11	25627			175	60	76	685	615
BFFL630A	Flange Stub	630	11	23781			172	63	86	685	642
BFFL710A	Flange Stub	710	11	35289			175	45	97	800	737
BFFL800A	Flange Stub	800	11	44787			173	32	92	905	840
BFFL63B	Flange Stub	63	17	153	420*340*420	60	93	75	8	102	75
BFFL75B	Flange Stub	75	17	211	420*340*420	50	103	73	10	122	89
BFFL90B	Flange Stub	90	17	362	420*340*420	36	125	82	10	138	105
BFFL110B	Flange Stub	110	17	522	420*340*420	18	140	100	10	158	125
BFFL125B	Flange Stub	125	17	483	420*340*420	15	135	101	11	158	132
BFFL140B	Flange Stub	140	17	746	420*340*420	12	140	94	15	188	155
BFFL160B	Flange Stub	160	17	1242	420*340*420	10	126	79	15	212	175
BFFL180B	Flange Stub	180	17	1085	420*340*420	10	140	124	16	212	180
BFFL200B	Flange Stub	200	17	2160	420*340*420	4	174	123	17	268	232
BFFL225B	Flange Stub	225	17	2196	530*440*330	4	161	104	22	268	235
BFFL250B	Flange Stub	250	17	3342	530*440*330	4	173	114	23	320	285
BFFL280B	Flange Stub	280	17	3219	530*440*330	4	173	125	24	320	291
BFFL315B	Flange Stub	315	17	4434	530*440*330	2	175	141	35	370	335
BFFL355B	Flange Stub	355	17	5849			175	113	33	430	373
BFFL400B	Flange Stub	400	17	7557			175	155	36	482	427
BFFL450B	Flange Stub	450	17	12062			175	92	40	585	514
BFFL500B	Flange Stub	500	17	11765			176	101	45	585	530
BFFL560B	Flange Stub	560	17	16188			175	95	41	685	615
BFFL630B	Flange Stub	630	17	15807			172	94	55	685	642
BFFL710B	Flange Stub	710	17	22873			175	85	57	800	737
BFFL800B	Flange Stub	800	17	30401			173	62	62	905	840
BFFL900B	Flange Stub	900	17	40388			175	55	82	1005	944
BFFL1000B	Flange Stub	1000	17	49354			170	44	90	1110	1047
BFFL1200B	Flange Stub	1200	17	72870			181	59	92	1330	1224

---
