Plastic Pipe Making Machine Tube Extruder PVC Pipe Machine Plastic Extrusion Line Pipe Production Machine Water Pipe Extrusion Machine

Product Description

Keep on going for new technology for plastic pipe extrusion is our target. Welcome contact us!

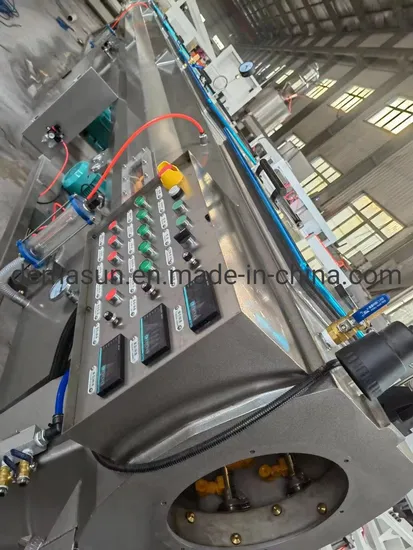

PVC pipe extrusion line
Suitable for U-PVC, M-PVC, PVC pipe extrusion.
It is mainly used in plasticizing, extruding and forming of PVC pipes, plates, sheets, film , profiles and granules, etc.

Pipe outer diameter	Extruder	Maximum Capacity(kg/h)	Main motor Power(kw)
Ø16- Ø40(double-pipe)	SJZ51/105	120	18.5AC
Ø20-Ø63(double-pipe)	SJZ65/132	250	37AC
Ø20-Ø63(single pipe)	SJZ51/105	120	18.5AC
Ø40- Ø160	SJZ55/120	200	22AC
Ø50- Ø250	SJZ65/132	250	37AC
Ø160-Ø400	SJZ80/156	380	55AC
Ø315-Ø630	SJZ92/188	800	110AC
Ø710- Ø1000	SJP105/216	1000	160DC

ADVANTAGES,
Conical Twin Screw Extruder High-speed extrusion, High efficiency, Steady running, with high capacity and low power consumption Siemens PLC Control System Intelligent & centralized control Multiple-language Intelligent alarm system Standard Electrical Part Siemens, ABB, RKC, Omron, etc. Extrusion Die Spacious flow channel design to guarantee high extrusion capacity and good melt. Optimized temperature control and flow channel design, precise melt temperature control. Excellent material and reasonable design to make sure its long service life. Rich experience on extrusion die design and manufacturing. Vacuum tank Thick stainless steel as raw material for vacuum tank, it will make sure long service life. Advanced pipe line layout design and adjustable spray angle for better cooling effect, and fast cooling. Haul-off machine For the different pipe size and different speed requirement, we have developed kinds of haul-off unit accordingly. The haul-off unit equipped with single motor drive for every claw with separate motor drive, there is the belt type haul-off unit, stable hauling. Cutter Reasonable cutting design, endurable, dust-collecting efficiently and stable for cutting. Belling machine(as optional) Online or offline belling machine are optional. R type, U type and square type as belling machine at customer's requests. High-efficiency Heating And Cooling

---
