IQF Tunnel Conveyor Belt Cooling Freezing Machine for Avocado Pizza Tart Dough

Product Description

Product Description

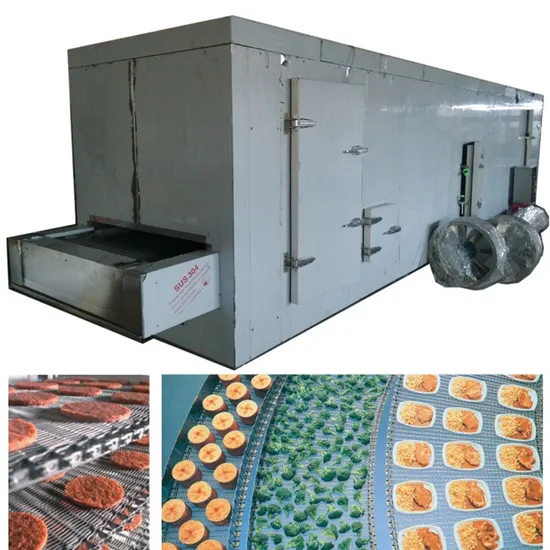

Conveyor Belt Tunnel Quick Freezing Machine Freezer
1.Raw Material:All kinds of vegetables and fruits, meat, seafoods, prepared food,etc.
2.Output capacity:50-4000kg/h
3.Freezing Source: R22, R404A, R717A, 507, Freonetc
4.Freezing Temperature: -38±2ºC.
5.Main Machine material: Food Grade Stainless Steel
6.Freezing Time: 10-40minutes or customized
7.FOB Price Budget: USD9,900-99,000
8.After-sales Service Provided:Engineers available to service machinery overseas
9.Warranty:1 Year
IQF Conveyor Belt Tunnel freezer is mostly used for quick freezing of fruits & vegetables, meat, seafood, prepared food and all kind of package food or raw material. Such as chicken nugget, shrimp, pawn, fish, carrot, strawberry, blueberry, dumpline, meat roll, snack food, etc
Quick freezing processing of seafood, poultry, vegetables, fruits, pasts, dairy products, etc.
1.Simple structure, convenient operation and long service life.
2.Use the high strength SUS304 board to carry the frozen product, the surface is flat, and the width of the conveyor belt can be seleted according to customer requirement.
3.Adopt thermal wave blowing style to ensure freeze efficiency. Detailed Photos

Product Parameters

Model	ST-SD100	ST-SD300	ST-SD500	ST-SD1000	ST-SD1500
Capacity KG/HR	100	300	500	1000	1500
Power KW	2.25	6.5	10.3	19.8	28.6
Refrigeration Consumption KW	15	45	75	145	225
Input Temperature ºC	+15	+15	+15	+15	+15
Discharge Temperature ºC	-18	-18	-18	-18	-18
Inner Circulation Temperature ºC	-36±2	-36±2	-36±2	-36±2	-36±2
Freezing Time Minutes	15-40	15-40	15-40	15-60	15-60

Packaging & Shipping
Installation Instructions
Company Profile

---
