Yaskawa Driver Swiss Turning CNC Swiss-Type Automatic Lathe Metal Turning High Precision CNC Machine with Resin Sand

Product Description

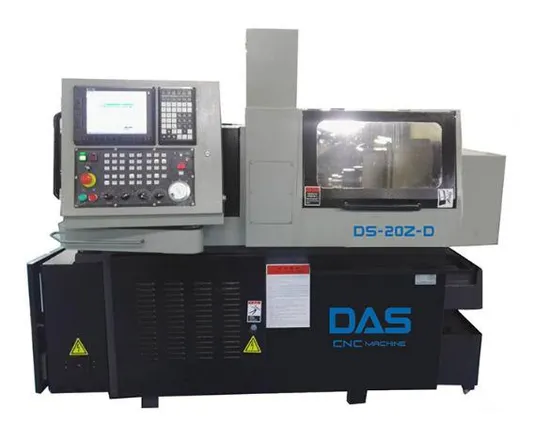

DAS DS-20Z-D Torno CNC High Precision Metal Automatic Hydraulic Double Spindle Swiss cnc lathe Machine without Power Head Product Description
-The base of machine tool is integrally cast with resin sand, its features strong shock vibration resistance and less defor mation.Ensuring the high rigidity and high precision of the machine tool. Widely applied in processing of long axis co mponents for electronics, telecommunication, facsimile machine and printer etc.
-The machine tool control system use Taiwan SYNTEC system(other brand systems can be chosen).
Renowned electric appliances such as vaskawa driver, servo motor and inverter as well as other world famous brands are used.
-Drive part of machine tool use Taiwan famous brand HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail.
-Automatic intermitent lubricating system is used, with intermision time controllable by the system.

Model	DS-20Z-D
Spindle travel(mm)	75
Max.Spindle speed(r/min)	8000
Max.swing diameter(mm)	Φ20
Min. divisions	Stepless
diameter of spindle(mm)	Φ22
Gang type quantity(row)	5
Blade handle parameter(mm)	12×12
Face tool quantity(row)	4
Max.drilling diameter front(mm)	M6
Radial power tool quantity	4
Radial power tool Max.speed(rpm)	5000
Max.drilling diameter radial (mm)	Φ8
Max. tapping diameter radial(mm)	M6
Max.saw blade milling cutter diameter radial(mm)	30
Spindle motor(kw)	2.2/3.7
Radial power tool motor(kw)	0.75
Servo motor(kw)	(X,Y,Z)0.75
Lubrication pump motor(kw)	0.25
Cooling pump motor(KW)	0.85
Rapid feed rate(m/min)	X/Y30,Z24
Coolant tank capacity(L)	100
Lubricating capacity(L)	10
Middle of spindle to ground height(mm)	1050
Machine power(kw)	12
Net Weight(KG)	2780
Machine Dimensions(LxWxH)(mm)	2100*1100*1700

Good Feedback
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District,Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .
Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes, featuring space saving, low cost and diversified arrangement etc.
They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof,electronic industry, optical instruments, clocks and watches as well as special motors etc.
We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service,which ensure us the first consideration when you purchase high-precision machine tools.

---
