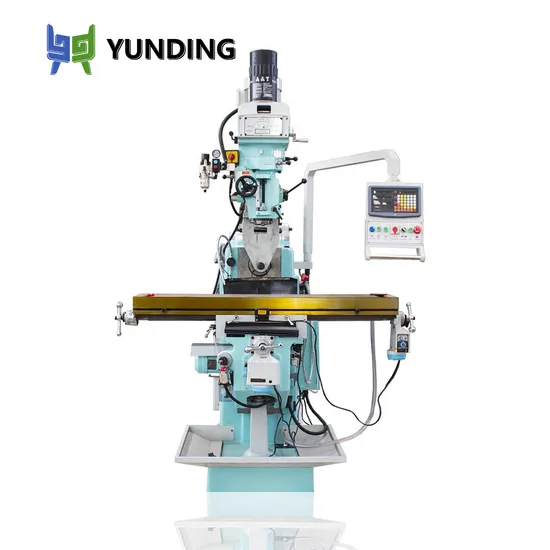

10% off Precision Vertical Universal X6325W China Manual Turret Mill Machine Tools

Product Description

Product Description
10% off Precision Vertical Universal X6325W China Manual Turret Mill Machine Tools
we are the most professional in making horizontal milling machine
Product Parameters
Performance characteristics: 1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operationApplication:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Main technical specifications	Model	Units	X6325W	X6330W
	Table size(mm)	mm	1270X254	1370X305
	Long travel(mm)	mm	780	900
	Cross travel(mm)	mm	400	400
	Vertical travel(mm)	mm	370	420
	T-slot No. and size		3x16	3x16
	Ram travel(mm)	mm	500	500
	Distance from spindle nose to table surface(mm)	mm	0-500	0-500
	Spindle hole taper	mm	Standard:R8	Standard:R8
			Optional: ISO30/ISO40	Optional: ISO30/ISO40
	Spindle travel(mm)	mm	127	127
	Spindle speed		Standard:16steps Shift grade:	Standard:16steps Shift grade:
			50HZ:65-4500	50HZ:65-4500
			60HZ:80-5440	60HZ:80-5440
			horizontal 45-1350(12 step less)	horizontal 45-1350(12 step less)
			Optional : stepless	Optional : stepless
			Variable: 65-4500	Variable: 65-4500
	Auto quill feed	kg	Three steps: 0.04/0.08/0.15 mm/revolution	Three steps: 0.04/0.08/0.15 mm/revolution
	Telescopic stroke	mm	470	470
	Spindle power	KW	V 2.2KW/3HP/ (Optional 5HP)	V 2.2KW/3HP/ (Optional 5HP)
			H 2.2KW / 3HP	H 2.2KW / 3HP
	Head swivel	°	90	90
	Head tilting	°	45	45
	Dimension of package	mm	1516x1550x2235	1516x1550x2235
			1680x1790x2235(include 2 sets)	1680x1790x2235(include 2 sets)
			1650x2285x2235(include 3sets)	1650x2285x2235(include 3sets)
	G.W./N.W. (kg)	Kg	1100/1450	1200/1550

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
