| US$15,000.00 | 1 Piece (MOQ) |

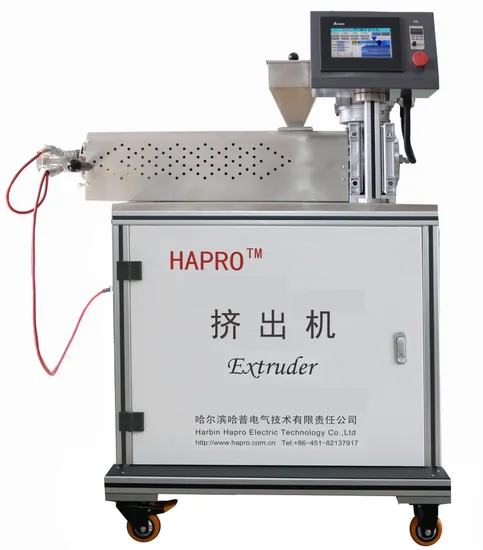

| Photograph | Performance Index | Performance Parameter |
| Control interface | HMI | |
| Motor | AC inverter | |
| Motor power | 1.5 kW | |
| Reducer | TCG | |
| Speed ratio | 1:15 | |
| Screw speed | 100 r/min | |
| Screw Diameter | 20mm | |
| Screw L:D | 25 :1 | |
| Compression Ratio | 2.4:1or 3.6:1 | |
| Speed Range | 1-100 rpm | |
| Heating | Electrical Heating,PID,4 Zones | |
| Temp control system | RKC from Japan | |
| Heating zone | 4 Zones | |
| Max. Temperature | 350ºC | |
| Heating power | 3 kW | |
| Temperature sensor | J type thermocouple | |
| Cooling | compressed air cooling | |
| Pressure Accuracy | 0.5%F.S | |
| Pressure Range | 0.1 ~ 100 Mpa | |
| Output | 1 -5 kg/ hr | |
| Feeding speed | Manual adjustment | |
| Feeding | Screw metering feed | |
| Power supply | 3×380V,50/60 Hz ,+N +PE | |
| Dimension(L×W×H) | 1000×400×350 mm | |
| Weight | 150 kg | |
| Dies head (Select two from four) | Capillary Die (InnerФ1.0,Ф1.27,Ф2.0 L:D:20/1,30/1,40/1) | |
| Flat Die( L×W:60×1.5 mm, 0.8 kW) | ||
| Pipe Die(Inner Ф10, Outer Ф12.5) | ||
| Coating Wire Die (Core Ф1.5,Die outlet Ф4.0) |
