Semiconductor Device Fabrication Fab Wafer Thinning Polishing Mdxz-G200hg Semi Automatic Wafer Grinder Grinding Machine

Product Description

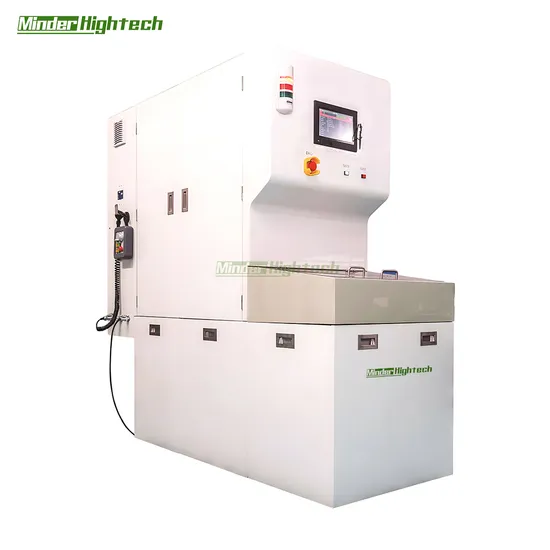

MDXZ-G200HG Semi Automatic Wafer Grinder
Semi automatic single axis wafer back thinning
Grindable wafer size 4-8 "
Single axis single disc mode
Online thickness measurement
Corresponding to irregular specifications
Capable of processing irregular shaped products
Parameters

Grindable wafer	Size	Inches	4,5,6,8
Rubbing way		-	Vertical plunge grinding method
Grinding wheel spindle	Types	-	Air bearings
	Quantity	-	1
	Speed	rpm	0~5000
	Output Power	Kw	5.5/7.5
	Stroke	mm	150
	Feed Speed	um/s	0.01~100
	Fast forward speed	mm/min	300
	Resolution	um	0.1
Workpiece axis	Type	-	Ball bearings
	Quantity	-	1
	Speed	rpm	0~300
	Power	kw	0.75
	Suction cup type	-	Microporous ceramics
	Wafer suction method	-	Vacuum adsorption
Wafer transfer		-	Manual
Other functions	Wafer centering	-	-
	Wafer cleaning	-	-
	Suction cup cleaning	-	-
Grinding wheel		mm	Φ200
Online measurement	Measurement range	um	0~1800
	Resolution	um	0.1
	Repeat accuracy	um	±0.5
Machining accuracy	Intra-wafer accuracy (TTV)	um	≤2
	Inter-wafer accuracy (WTW)	um	±3
	Surface roughness (Ry)	um	0.1(2000#finish)
Appearance	Appearance coloring	um	Orange Pattern
	Dimensions(W×D×H)	mm	690×1720×1780
	Weight	kg	1400

Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment.
The company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
Frequently Asked Questions
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.
2. About Sample:
We can provide sample production services for you, but you may provide some fees.
3. About Payment:
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.
4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.
5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.
6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.

---
