275/300/315/350/400/425 Specification Round Saw Blade Open Tooth Gear Grinding, M2 M35 M42 Dm05 HSS Circular Saw Blade Sharpener for Metal Pipe Bar Cold Cutting

Product Description

Product Description

275/300/315/350/400/425 Specification Round Saw Blade Open Tooth Gear Grinding, M2 M35 M42 DM05 HSS Circular Saw Blade Sharpener for Metal Pipe Bar Cold Cutting

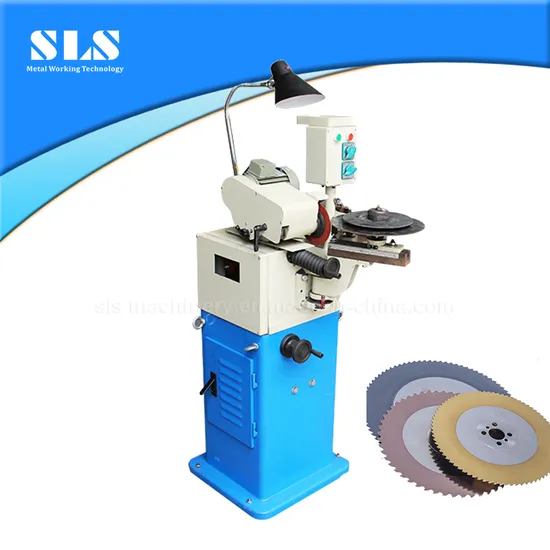

Brief Introduction on HSS Circular Saw Blade Sharpener
SLS 275/300/315/350/400/425 Specification Round Saw Blade Open Tooth Gear Grinding, M2 M35 M42 DM05 HSS Circular Saw Blade Sharpener for Metal Pipe Bar Cold Cutting , It is the perfect circular saw blade sharpener allowing you to do your own sharpening economically and quickly right in your own shop. Makes precise grinding with the saw blade an easy process, saving time and labor.The transmission unit, driven by the grinding wheel and transmission device, ensures efficient and safe functionality.Tooth chamfering is easily performed, without need to replace grinding wheel.Micrometric adjustment for pitch and depth of teeth. Variable speed pulley affords a complete range of feed from 45 to 180 teeth per minute.We keep many cold saw models in stock for quick shipments.


Features on HSS Circular Saw Blade Sharpener Operation panel offers easy operation of machine.
Economical, efficient and simple construction. Drive assembly is a simple combination of driving motor and cam drive motor, providing dependable feeding and trouble-fee operation.
All regulating levers are arranged in the proper order so that quick and easy adjusting can be made with the: cutting angle, back gap angle, gear depth, tooth pitch, as well as grinding the saw blade precisely.
The no step speed change of the belt disc on the machine makes adjusting the angle a seamless process to keep up with the change in the tooth pitch.
The head of the grinding wheel is able to move up and down to grind the bevel edge without having to replace the grinding wheel.
The machine is controlled by an elevation difference control button, which can grind the tooth at different elevations. There is also an SG-2 option.
The transmission unit, driven by the grinding wheel and transmission device, ensures efficient and safe functionality.
Main Technical Parameters Sheet

Model	SG-450	-
Capacity	50-450mm	-
Max Teeth Distance	25mm	-
Max Teeth Depth	8mm	-
Grinding Wheel Range	-5-30 degree	-
Grinding Wheel Size	75-150mm	-
Grinding Wheel Rotating Speed	4200 rpm	-

FAQ:

1.Q: Are you a manufacturer or trading company?	A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2.Q:Where is the nearest airport to your company?	A: Wuxi Airport or Shanghai Airport.
3.Q: How to choose the saw blade sharpener machines?	A: You have to inform us following details: - Saw Blade Size - Teeth Number - Saw Blade Thickness - Other Requirements
4. Q: Do you have CE certificate?	A: We have CE certificate.
5. Q:How about your service?	A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.

---
