Farm Machinery Tractor Rotary Tiller Cultivator for Garden

Product Description

Product Description

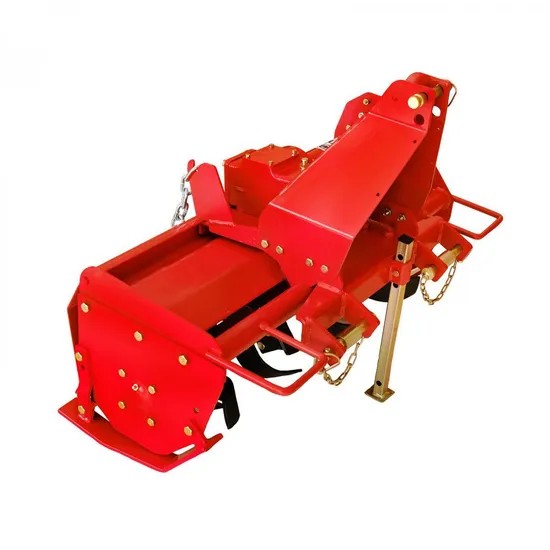

Light Duty Tractor Rotary Tiller Cultivator
TL rotary tiller is suitable for soil preparation, in the vineyard, nursery, orchard, and for gardening.
aluminium alloy gearbox, with offset function, side chain drive in oil bath, automatic chain tensioner, 4 spiral blades per flange,adjustable skids to obtain the desired working depth, adjustabke rear shield ensures best ground levelling, Cat. I and II universal three-point hitch, cardan shaft support, CE safety guards. Product Parameters

Model	TL-85	TL-95	TL-105
Dimensions	950*675*750mm	1150*675*750mm	1250*675*750mm
Structure Weight	155Kg	175Kg	195Kg
Working Efficifency	1300-2100m2/h	1500-2200m2/h	1700-2300m2/h
Tilling Depth	90mm	90mm	90mm
Tilling Width	800mm	900mm	1000mm
PTO Turnning speed	540r/min	540r/min	540r/min
PTO Spline	6*8*700mm	6*8*700mm	6*8*700mm
Power Required	12-20hp	12-20hp	15-22hp

Model	TL-115	TL-125	TL-135
Dimensions	1350*675*750mm	1400*675*750mm	1550*675*750mm
Structure Weight	215Kg	235Kg	255Kg
Working Efficifency	1900-2400m2/h	2100-2500m2/h	2300-2600m2/h
Tilling Depth	90mm	90mm	90mm
Tilling Width	1100mm	1200mm	1300mm
PTO Turnning speed	540r/min	540r/min	540r/min
PTO Spline	6*8*700mm	6*8*700mm	6*8*700mm
Power Required	15-22hp	18-22hp	18-22hp

Detailed Photos
Packaging & Shipping
Company Profile
Yancheng Newbang Machinery Co., Ltd. is one of the major tractor implement and ATV implement manufacturers in China.Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on(30 series and more than 200 models).Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America,Europe,Asia, etc. We get a good reputation from the worldwide customers.
FAQ
Q1. what's your main products?A: Our products are covered almost all farm machines.
Q2: How long is the delivery date?A: In general, we can ship the goods within 30-45days after receiving your payment.
Q3. Do you have after-sales service?A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality.Q4. Can you print my brand name on it?A: Of course, you just need to send us the picture of your brand.Q5. what's your payment term?Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L.Q6. Can I mix different models together?A: Yes, you can mix different products or models in a container and we will try our best to use the container place.Q7. what your terms of payment?A:T/T, L/C, and western union, Made-in-China trade assurance order.

---
