Tubular Bowl Centrifuge for 2 Phase Clarification

Product Description

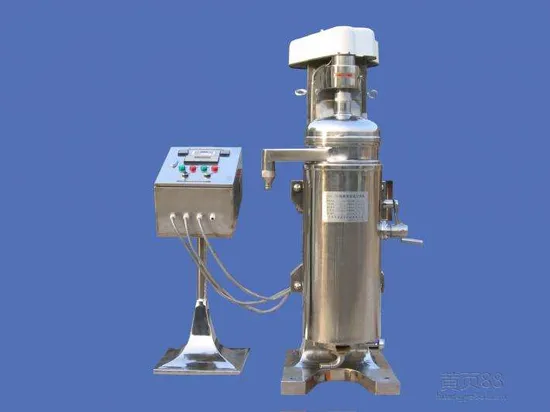

GQ Tubular Centrifuge
High speed separation & clarification. GQ series Tubular Centrifuge from Huading Separator is a high speed solid bowl type machine for continuous removing solids from liquid with density difference.
Tubular centrifuge is an ideal instrument in biology, traditional medicine preparation, health food, chemistry for liquid-solids separation. It is especially designed for separation and clarification of process liquid with low density difference, small granularity, low solid content, strong medium corrosion.

Project model		GQ	GQ105	GQ125	GQ150
Turn Drum	Diameter(mm)	75	105	125	142
	Rotational speed (r/m)	19000	16300	15000	13400
	Volume(L)	2.2	6	8	10
Separation factor		15200	15620	15700	14300
Feed nozzle diameter(mm)		3,5,7	4,6,8	4,6,8	4,6,8
Material import pressure(Mpa)		>0.05	>0.05	>0.05	>0.05
Water passing capacity(L/H)		600	1200	1500	2500
Motor power(KW)		1.5	2.2	3	3
Machine weight(KG)		260	500	530	550
Dimensions(mm×mm×mm)		450×760×1120	600×900×1600	600×900×1600	600×900×1600

---
