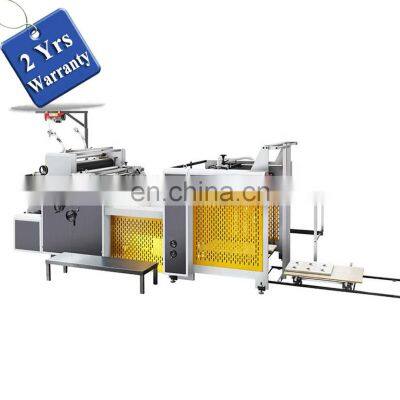

SZFM1100 Automatic Water Glue paper Laminating machine, paper photo album catalogue BOPP cold laminator
Videos
Video demonstration only for reference
Video 01: /watch?v=zWF9tGqf6F0
Video 02: /watch?v=E0iHDYsJ8no
Product Description
Features:
1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2. Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection.
3. Conveying table is furnished with air aspirator, side lay and front lay etc. to guarantee paper conveying and overlap stable and regular.
4. Automatic running includes automatic paper feeding, laminating and winding.
5. Glue supplying system supplies and recycles water-base glue automatically.
6. Dip coating saves glue and homogenizes coating much better.
7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
8. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
9. Automatic paper winder rolls up laminated paper. Winding speed is adjustable upon applications.
10. Powerful UV drying lamp is equipped for smooth working in humid and cold climate.
11. Imported reliable frequency converter is equipped for infinitely variable speed, and the operator can change the machine’s speed easily and guarantee the machine’s running stable.
12. The winded paper is supported by a trolley, and then put on cutting machine for quick
Parameters:
Model
| SZFM-1100
|
Max Paper Size
| 1040*980mm
|
Min Paper Size
| 325*325mm
|
Paper Thickness
| 128-400GSM
|
Max Laminating Speed
| 75m/min
|
Main Power
| 8kw
|
Total Weight
| 2000kg
|
Overall Dimensions
| 3700*1800*1750mm
|
Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
