2025 Top Quality Powder Coating Curing Oven Manufacture Price

Product Description

2025 Top Quality Powder Coating Curing Oven Manufacture Price

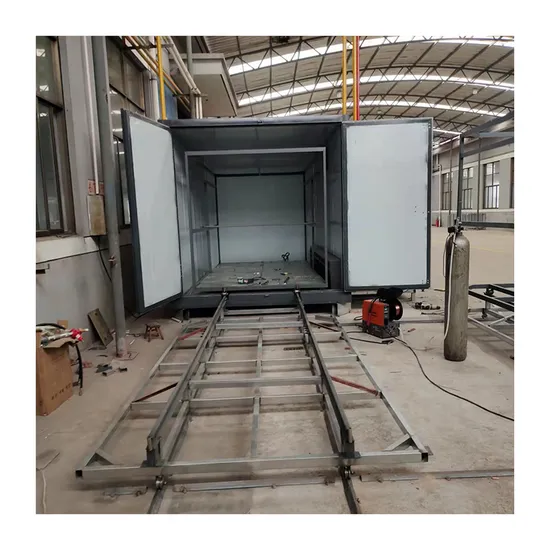

Powder Coating Ovens are used for curing powder on metal substrates, such as aluminum extrusions, sheet metal, wheels, composite parts, bike frames and various metal geometric shapes. When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.
Advantages:
* Easy installation
* Lower using cost
* Energy saving
* Long service lifetime
* 304 stainless steel fan impeller * The control cabinet is touch screen + PLC, the furnace temperature, hot air temperature, and holding time are automatically controlled (the temperature is only started) * It is used as a high temperature resistant wheel for workpiece trailers.
Specification of Powder Coating Oven:

Heating system	Italy Diesel Burner Heat chamber and Heat exchange tubes are made of 304 and 316 stainless steel. With rock wool insulation.
Circulation system	Be equipped with a high temperature centrifugal fan; The fan impeller is made of stainless steel. The fan bearing protection method is liquid circulation cooling protection. Independently adjustable hot air ducts are arranged inside the chamber to make the temperature in the curing furnace uniform. The air duct is made by punching and bending with a 0.8mm galvanized sheet.
Guide Rail	One side equip ground rail used for workpiece entry and exit.
Optional	With transfer trolley
Control system	Microcomputer control, dual display digital temperature controller, hot air temperature and oven temperature are automatically controlled. Fan control, heating control, temperature control, indicator lights for various items, and emergency stop. Safety device, one set of explosion-proof relief valve, when the pressure inside the curing furnace increases, it will automatically open and discharge the excess air.

Optional Size:
Outer size(L*W*H)	Outer size(L*W*H)
2850*2300*2400mm	2650*2100*2000mm
3800*2300*2400mm	3600*2100*2000mm
4750*2300*2400mm	4550*2100*2000mm
5700*2300*2400mm	5500*2100*2000mm
6650*2300*2400mm	6450*2100*2000mm

Machine Details
Other Options:
FAQ:
1. Is it safe to operate the machine?
Our equipment is safe, user-friendly and easy to operate, which provides secure setup and all mechanical units can be controlled well.
2. When I get this machine, but I don't know how to use it. What should I do?
There are videos and English manual together with the machine. Also, our technical team is 24 hours online for service support.
3. If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. If you have any question,just contact us freely.
4. There are so many machine types, which one should I choose?
It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, please do feel free to contact us.
5. This is my first time to buy your machine; I have no ideas about the machines quality?
Each machine is strictly produced based on the industrial standard and CE certifications. Our products have CE certifications verified by TÜV SÜD, Bureau Veritas and etc. Customer is our first priority. We are confident in our high quality and reliable services.
6. How about the payment terms?
Wire transfer/Western Union/LC/Cash and so on.
Reliable Services:
1. All of machines are fully assembled and thoroughly tested and checked prior to shipment.2. We provide pre-sales technical advisory services, technical maintenance training and operational training services.3. We provide free repair for main spare parts within warranty period according to warranty agreement.4. We provide upgrades and maintenance for software system within warranty period.5. We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.6. We provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price beyond warranty period.

---
