Basic Info.
Application Field
Agriculture
Operation
Soil Preparation Machinery
Warranty
One Year Warranty
Structural Style
Trail-Type
Tire/Track Spacing
2250mm
Working Size
7000mm*2700mm*2800mm
Working Efficiency
0.2-0.27ha/H
Transport Package
Container/Wooden Case/Iron Frame/Plastic Film Wind
Specification
7000mm*2400mm*2550mm
Production Capacity
20000sets/Years
Product Description
Product Description

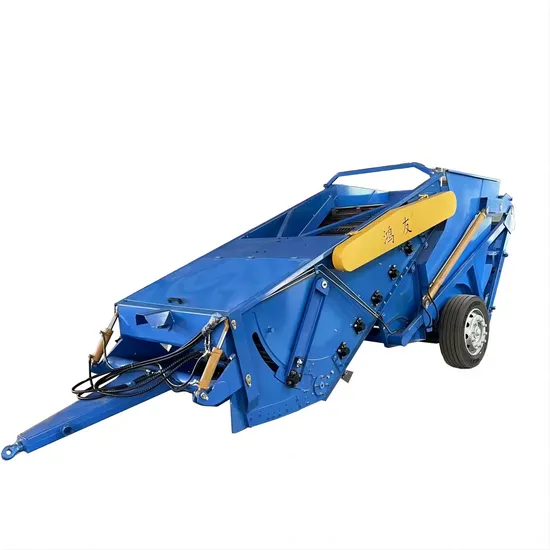

China Manufacturer Big Stone Rock Collecting Machine Picker for Sale with Best Price with 12JS-160
The main function:
A stone picking machine, also known as a stone picker or rock picker, is a specialized agricultural machinery designed to remove stones, rocks, and debris from fields, improving soil quality and preventing damage to farming equipment during subsequent operations.
Detailed Photos
A stone picking machine is a self-propelled or tractor-mounted device that systematically collects stones and other unwanted objects from the soil's surface. It typically consists of a series of rotating screens, belts, paddles, or rollers that separate stones and debris from the soil, depositing them into a collection hopper or container for removal. Stone picking machines vary in size, capacity, and design, catering to different farm sizes and requirements.
Product Parameters
| Model | 12JS- 160 | Dimensions(mm) | 7000*2400*2550 |
| Operation width(mm) | 1600 | Operating depth(mm) | 0-300 |
| Pick Up The Smallest Size | 28.8mm/41mm | Supporting power | 150HP |
| Weight(kg) | 4800 | Conveyer Type | Grid Chain |
| Conveyor Chain Gap | 50.8mm/63.5mm | Volume Of Collection Box | 4.2m³ |
| Heating Method | Hydraulic Cylinder | Unloading Height | 2000mm |
Certifications
Packaging & Shipping
To ensure the safe delivery of your products, we offer a range of packaging options including direct loading container, Wooden case packing, iron frame wrapping and direct wrapping. You can select the most suitable option based on your specific requirements.
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.
Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.
The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.
We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop.
