Estop Movable Column Surface Grinder Hydraulic Surface Grinding Machine

Product Description

Product Description

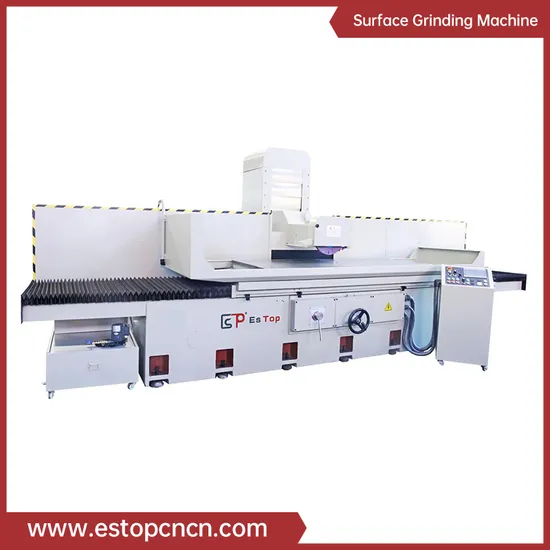

Estop Movable Column Surface Grinder Hydraulic Surface Grinding Machine
Movable Column Precision Surface Grinding:
These series, column type surface grinding machine, are featured by various kind ranging from 300~800mm of cross working width to 800mm passed the limit of single column mode based on accumulated know-how derived from long experience.
-Suitable for wide range of grinding from heavy grinding to precision grinding
-Maintenance of high strength due to high-elasticity structure of base, column and table
-Convenient grinding operating by ergonomic design
-Handle intensively arranged on the front of base
-Cross movement Set-up is possible on Control panel
-Easy and convenient operation
Application:
Mold base, Mold cavity, Mold parting surface, Mold guide pin, Mold guide bush, Mold insert, Guide rail, Crankshaft, Camshaft, Concave mold, Punch
Features and applications:

1. The guide rail are affixed with advanced imported wear-resistant adhesive, manual precision scraping to ensure lasting accuracy.
	2. The spindle independent design to add one more bearing, increase a bearing model, both heavy rough 1, the guide rail are affixed with advanced imported wear-resistant adhesive, manual precision scraping to ensure lasting accuracy. grinding can also be finished.
3. The use of high-quality motor, V3 level vibration, low noise, small vibration, reliable quality.
4. The main castings of the machine tool are made of advanced cast iron. After annealing treatment, vibration aging treatment and removal of the internal stress of the castings, the stability of the castings is greatly improved and it is not easy to deform.

Product Parameters:

Main item	Column movable Surface Grinding machine	Unit	ETD-80160	ETD-80200
Worktable	Electromagnet table size(x*y)	mm	1600x800	2000x 800
	Left and right Xaxis travel	mm	1800	2200
	Front/back Y axis travel	mm	870
	Max center of wheel to table	mm	560
	Worktable Maximum loading copacity	kg	3000
	Table t-slot specification	mm*n	18x3
	Worktable feed speed	m/min	5-30
In front and back Feed	Front/back Hand wheel feed degree scale	mm	0.02/5
	Front/back Automatic feed	mm	0.1-8
	Front/back(50HZ/60HZ) Fast moving speed	mm/min	990/1190
Grinding wheel	Grinding wheel size max	mm	Φ350xΦ127x20-50
	(50HZ/60HZ) Grinding wheel speed	R.P.M	1450/1740
Z axis Up and down	Up/down Hand wheel feed degree scale	mm	0.005/0.2
	Up/down Fast moving speed	mm/min	230
Motor	Spindle motor	HP*P	15x4
	Up and down, The Z axis motor	W	1/4x6
	Hydraulic motor	HP*P	10x6
	Cooling motor	W	90
	In front and back servo, The Y axis motor	W	1/4x6
Machine Size	Machine Tool Profile size L*W*H	mm	5500 x 3050x2250
	Weight	kg	≈7800	≈9200

Product Category
One-stop Shopping
You can click on the picture to view the products you are interested in.
Our Service
Speed up your production and Achieve high quality with ESTopCNC.Revolutionizes your factory with ESTopCNC machine.
Installation:
You have decided to purchase products from ESTOP and now want to ensure that they are commissioned in a quick and hassle-free manner. Our installation service makes things as easy as possible.
Maintenance and repair:
Exceptionally high-quality machines require an exceptionally professional service. That's why it pays to bring in specialists. At ESTOP, we know our systems better than anyone else. But there is much more to a good service than this: we are easy to contact, offer prompt availability and boast motivated employees.
Spare parts:
Do you want to perform any repairs that become necessary yourself? Send us your name, part number and the quantity of the required spare parts. Your order will be processed by us immediately. The prompt delivery of ESTOP genuine spare parts is often crucial to ensure the fast repair of a system. The most popular spare parts are stocked in our factory in China.
Training:
To enable you as a user to work skilfully and safely with ESTOP's milling machine and to evaluate the acquired data in a professional manner, ESTOP offers in-house seminars.
Custom made:
Customized design outside of the typical condition.
Service contact:
Do you have a question for our Service Team or would you like to order new machine or spare parts? Professional and easy to contact - you will find the right person to speak to for any matter here.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.

---
