| DC Resistance and AC Impedance testable. Built-in adjustable signal generator 20 Hz ~ 8 kHz, external frequency input is available. Upper / Lower limits can be set. Very fast judging the PASS / FAIL. Two LCD display impedance & freq., 152A can be used as a stand alone freq. counter. Used for testing the impedance and resistance of the receiver,loudspeaker,headphone ... etc., auto judging PASS / FAIL , can be used also as a frequency counter. Electroacoustic component has different impedance under different frequency, needs to set a suitable frequency to test the rated impedance of such component. 152A contains : a 20Hz ~ 8kHz signal generator, two LCD display frequency & impedance. Upper / Lower limits can be set. Very fast in auto judging the PASS/FAIL, suitable for 100% Q.C. in production line. 152A suits for the loudspeaker,headphone,receiver firms, also suitable for incoming inspection of the audio,monitor & multimedia firms. |

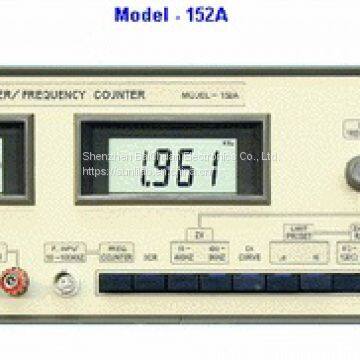

| Specifications of Model - 152A |
| Impedance / Resistance Range : 0 Ω ~ 120 Ω, Resolution 0.1 Ω 120 Ω ~ 4000 Ω, Resolution 1 Ω Signal Generator : 20Hz ~ 8 kHz , adjustable. Tolerance : 1 kHz Zx : <= ± ( 0.4 % +0.1 Ω ). Zx ( 20 Hz ~ 20 kHz ):<= ± ( 0.8% + 0.1Ω). DCR : <= ± ( 0.2 % + 0.1 Ω ) . 4. Frequency Counter : 10 Hz ~ 100 kHz. 5. Dim. : 36 ( L ) × 13 ( H ) × 28 ( D ) cm. 6. Net Weight : 4.5 KGS. |
