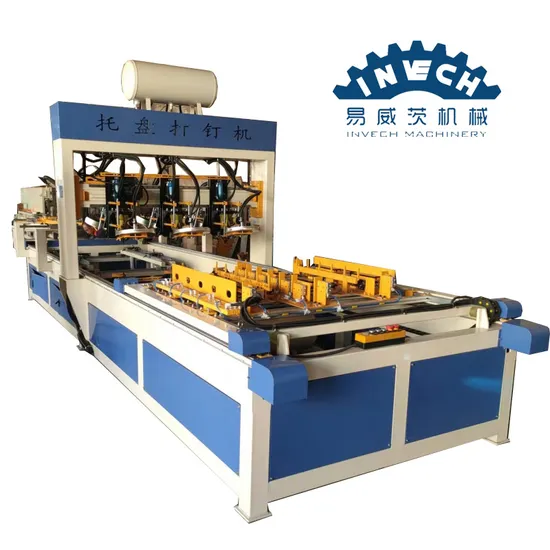

Automatic Wood Pallet Making Machine with Adjustable Molds

US$20,000.00-60,000.00 1 Set (MOQ)

Basic Info.

Model NO.
YBM-1300
After-sales Service
Online Service
Pallets Type
Stringer Pallets/Us Pallets
Power
2kw
Working Type
Semi-Automatic
Output
400-500PCS/Shift
Nailing Type
Pneumatic System
Pallet Size
750-1300mm
Transport Package
Soft Films in Container
Specification
20FT Container
Trademark
INVECH MACHINERY
Origin
China
Production Capacity
50PCS/Year

Product Description

Automatic Wood Pallet Making Machine with Adjustable Molds
Main Features:
Processing Method Manual feeding automatic nail automatic palletizing
Operating mode touch screen operation
Pressure Feeding Mode pneumatic pressing material
Connection Mode 220V Voltage (One Fire Line, One Zero Line, One Ground Line)
Motor Power 2KW Servo Motor
Nail gun model Program Control Automatic Nail
Equipment Safety, stability, high efficiency, small area, one person operation

Technical Parameters:
Tank Tray American standard tray, European standard tray, customizable special-shaped tray
Nail gun MAX,stanley,USA
Air pressure 0.8 MPA
Nail gun speed 7 times/s
Motor power 2KW servo motor per second
Receiving Automatic palletizing (hydraulic, pneumatic)
Size 3300 x 3300 x 3000mm (excluding palletizer)
