Complete Particle Board Production System for Sustainable Manufacturing

Product Description

Linyi Xingteng Wood-based Panel Machinery Co., Ltd.
was founded in 1993,it is wood-based panel complete production line R & D manufacturing and board production as one of the intensive enterprises, The company own three wood board factories,Shandong Heyang Wood Industry Co., LTD, Yingzhoushan (Shandong) Decorative materials Co,LTD and Malaysia Holy Crane Wood Product SDN BHD. The three wood-based panel factories and machinery manufacturing company support each other in terms of production process and technological innovationIt can also train the wood-based panel produciton process technical personnel for clients.

Brief Introduction:

The main products of Xingteng(Ginzhuo) are: M(H)DF,Particleboard(PB), oriented strand board(OSB) and veneer light oriented structural board (FOSB) and other wood-based board Mat-forming, Prepress, Hot press, Finishing lines,Thermal drying system,Ultra-low emission exhaust gas treatment system and other equipment production and process design,Electronic control system design,programming,debugging of the whole project.

Energy plant,Drying system
Calorific value:18.5~65MW
Main fuel: Screening unqualified materials,Impurities,Dust,Sanding powder and other non-reusable combustible biomass waste in the production process.
Main components: fuel preparation system,combustion system, fine powder auto spray burning system, flue gas blending purification system, heat transfer oil system, steam system, dust removal and slag system,automatic control system.
Function: Supply heating for the process of drying,refiner,hot pressing,glue making.
Features: High efficiency,energy saving,environmental protection.
Energy plant for particle board production line

Channel type drying system features 1.High thermal efficiency, it is the most advanced chips drying equipment in the world,equipped with automatic operating system, moisture content online detection device, fire extinguishing and explosion-proof device, with high efficiency and energy saving, high automation, simple operation, stable operation, uniform moisture content of chips after drying and other advantages. 2.The preheating device will blow the chips entering the system, so that the chips and hotair are fully mixed, At the same time, the impurities such as high density wood, sand and stone, nonferrous metal are pre-sorted and discharged through the discharge system. 3.The emergency discharge system is used to discharge the chips that enter the system through the rapid discharge device when the dryer breakdown, so as to avoid further losses caused by entering the subsequent equipment.

Dust collector system
Ultra-low discharge Wet ESP
The wet ESP is the most advanced wet electrostatic dust removal technology introduced by our company,
Combined with the operating conditions of the wood-based panel thermal drying system and developed energy-saving,efficient and ultra-low emission system suitable for the wood-based panel project.
The system can achieve an outlet particulate concentration of less than 10mg/Nm3.

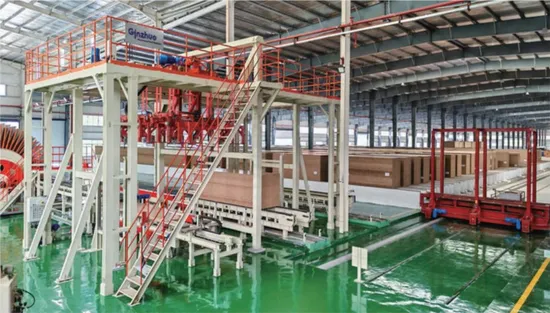

Hot press machine line
Technical parameter

Press parameter		4 ft	6 ft	8 ft	9 ft
Designed max pressing speed	mm/s	1500	1500	1500	1500
Heating platen width	mm	1430	2050	2650	2950
Steel belt infeed roller diameter	mm	2070	2070	2070	2070
Steel belt discharge roller diameter	mm	2100	2100	2100	2100
Roller rod diameter	mm	18	18	18	18
Steel belt width	mm	1450	2070	2670	2970
Max zone length	Mpa	5	5	5	5
Heating zone length	According to production capacity and hot pressing factor
Total power	According to production capacity and product type

Our Mechanical advantages 1. The hot press has a small gear opening, short auxiliary time, thin pre curing layer, and low sanding intensity. The machine operation is simple, the automatic detection is complete, and it can easily meet the requirements of automated production under unmanned control. 2. The products produced are in large format specifications and can be cut into non-standard sizes with different specifications according to user needs, meeting the diverse needs of users. The slab paving and transportation distance of the press is short, and the thickness symmetry of the paved slab is not easily damaged, and the finished slab will not deform. 3. The use of hot press machines has a low failure rate, long component life, and low maintenance costs.

Trust Xingteng(Ginzhuo), get your brand upgraded!

WHY CHOOSE CHINA XINGTENG (GINZHUO) ?
• One stop, whole plant solution supplier for MDF / HDF, OSB and Particle board.
• More than 300 production lines of PB / OSB / MDF / HDF board running on market.
• More than 30 years experience in wood-based panel field.
• Over 200 engineers and technicians for R&D and customer service.
• 24-hour quick feedback for technical questions and service.
• We can provide free training for technical personnel.
• No matter which country you are in, we will provide on-site after-sales service.
• 3 Particle board factories, 2 Medium(high) density fiberboard factories, and 1 mechanical processing and manufacturing factory are all our own factories.
Please feel free to contact us for more information about Wood-based panel machinery!

---
