Glass Fiber Yarn E-Glass Fiberglass Direct Roving for Profile

Product Description

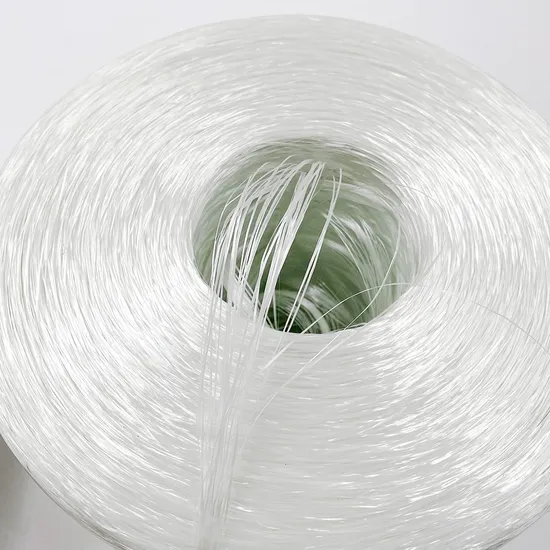

Product Description E-Glass Fiberglass Direct Roving for Profile Our E-Glass Fiberglass Direct Roving for Profile is a versatile product that is compatible with a range of resins, including unsaturated polyester, vinyl ester, epoxy, and phenolic resins. It is widely used in various industries such as building & construction, telecommunication, and the insulator industry.
With our high-quality direct roving, you can achieve excellent results in your pultrusion processes. The roving is designed to provide optimal reinforcement and strength to your profiles, ensuring their durability and longevity.
Product Feature (1) Less hairiness, strong insulation, alkali resistance.
(2) Elongation within the limits of elasticity and high tensile strength, so it absorbs a lot of impact energy.
(3)Inorganic fiber, non-combustible, good chemical resistance.
(4) good permeability, no white silk.
(5)Not easy to burn, can be fused into glassy beads at high temperature.
(6) Good processability, can be made into strands, bundles, felts, fabrics and other different forms of products.
(7)Transparent and can transmit light.
(8)Fusion with many kinds of resin surface treatment agent. Product Parameters

Item	Linear Density	Resin Compatibility	Features	End Use
BHP-01D	300,600,1200	VE	Compatible with matrix resin; High tensile strength of the end composite product	Used to manufacture optic cable
BHP-02D	300-9600	UP,VE,EP	Compatible with matrix resin; Fast wet out; Eexcellent mechanical properties of the composite product	Used to manufacture various sectional bars
BHP-03D	1200-9600	UP,VE,EP	Compatible with resins; Excellent mechanical properties of the composite product	Used to manufacture various sectional bars
BHP-04D	1200,2400	EP,Polyester	Soft yarn; Low fuzz; Compatible with resins	Suitable in manufacture of molded grating
BHP-05D	2400-9600	UP,VE,EP	Excellent tensile, flexural and shear properties for composites products	High performance pultruded profiles
BHP-06D	2400,4800,9600	EP	High fiber strength, Good integrity and ribbonization,Compatibility with epoxy resin, Complete and fast wet-out in resins, Good mechanical properties, Excellent electrical properties of the finished	insulation rods and insulation stanchions

Identification
Type of Glass	E
Direct Roving	R
Filament Diameter, μm	13	16	17	17	22	24	31
Linear Density, tex	300	200 400	600 735	1100 1200	2200	2400 4800	9600

Application Our E-Glass Fiberglass Direct Roving for Profile is a versatile product that can be used in various production processes and is compatible with different resins. It is suitable for applications in Pultrusion, Filament Winding, Weaving, LFT, and CFRT.
Packaging & Shipping Storage For optimal storage, it is recommended to keep the fiberglass roving in a dry, cool, and rain-proof area. Maintaining a room temperature of 15ºC to 35ºC and humidity levels between 35% and 65% is crucial to ensure the product's safety and longevity. To prevent damage, avoid stacking the pallets more than three layers high. If stacking in 2 or 3 layers, take care when moving the top pallet.
Before use, it is advisable to transfer the product to the workshop at least 24 hours in advance for proper conditioning.
Packaging The E-Glass Fiberglass Direct Roving for Profile can be conveniently packed on pallets or in small cardboard boxes, providing flexibility and ease of transportation.

Package height mm(in)	260(10)	260(10)
Package inside diameter mm(in)	160(6.3)	160(6.3)
Package outside diameter mm(in)	270(10.6)	310(12.2)
Package weight kg (lb)	15.6(34.4)	22(48.5)

Number of layers	3	4	3	4
Number of doffs per layer	16		12
Number of doffs per pallet	48	64	36	48
Net weight per pallet kg (lb)	750(1653.4)	1000(2204.6)	792(1764)	1056(2328)

Pallet length mm (in)	1120(44)		1270(50)
Pallet width mm (in)	1120(44)		960(37.8)
Pallet height mm (in)	940(37)	1180(45)	940(37)	1180(46.5)
