Product Description
Product Description

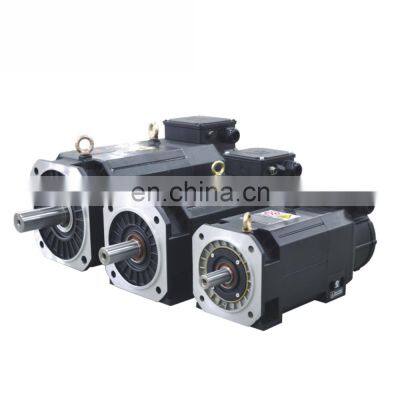

Products DescriptionGSK ZJY Series spindle servo motorZjy series spindle servo motor is independently developed and produced by Guangzhou CNC Equipment Co., Ltd. This series of motor adopts optimized electromagnetic design, with low electromagnetic noise, stable operation and high efficiency. Strong overload capacity, reliable operation at 150% rated power for 30 minutes, impact resistance and long service life; The imported high-precision bearing and rotor high-precision dynamic balance technology are adopted to ensure the stable and reliable operation of the motor within the maximum speed range, low vibration and low noise. Vibration level: Level B (GB 10068-2008). It adopts fully enclosed air cooling without shell, which is compact and beautiful as a whole. It can match three-phase 380V, 440V voltage, 220V voltage level and other driving units to meet different customer requirements.▶ characteristic:①It adopts fully enclosed air-cooled structure without shell, with beautiful appearance and compact structure.②Optimized electromagnetic design is adopted, with low electromagnetic noise, stable operation and high efficiency.③The imported high-precision bearing and rotor high-precision dynamic balance technology are adopted to ensure the stable and reliable operation of the motor within the maximum speed range, low vibration and low noise.④The corona resistant enamelled wire is adopted, and the motor can be used reliably under the ambient temperature of - 15 ℃ ~ 40 ℃ and the environment of dust and oil mist.⑤It adopts high-speed and high-precision encoder, which can be used for high-precision speed and position control in combination with high-performance driving unit.⑥It has strong overload capacity and can operate reliably under 150% rated power for 30 minutes and 300% rated power for 5 minutes.⑦The speed regulation range is wide, and the maximum speed can reach 12000r / min.⑧Impact resistance, long service life and high performance price ratio.⑨Protection grade: IP54 (GB / T 4942.1-2006)⑩Insulation class: Class F (GB 755-2008)⑪Vibration level: Class B (GB 10068-2008)Product ParametersMain technical parameters of three-phase 380 ~ 440V spindle motorZJY182-1.5BHZJY182-2.2BHZJY182-2.2CFZJY182-3.7BHZJY182-3.7DFZJY182-5.5CFZJY182-7.5EHZJY182-3.7BMRated power (kw)1.52.22.23.73.75.57.53.7Suitable GS drive modelGS3048YGS3048YGS3050YGS3050YGS3050YGS3075YGS3100YGS3050YDrive unit power supply (V)Three phase AC 380～440V 50/60HzRated current (a)7.37.5915.513192110.4Rated frequency (Hz)50506950877010050Rated torque（N·m）9.51410.5241426242430min power（kW）2.23.73.75.55.57.5115.530min current（A）9.31114.619.619253014.830min torque（N·m）142417.73521373535Rated speed（r/min）15001500200015002500200030001500Constant power range（r/min）1500～80001500～80002000～100001500～80002500～100002000～100003000～90001500～5000Maximum speed（r/min）100001000012000100001200012000100007000Moment of inertia（kg·m2）0.00560.00740.00560.01150.00740.01150.01150.0093Weight (kg)2732274332434337Installation typeIM B5/B35Cooling fan power supplyThree phase AC 380～440V 50/60Hz 37W0.1AMain technical parameters of three-phase 220V spindle motorZJY182-1.5BHZJY182-2.2BHZJY182-2.2CFZJY182-3.7BHZJY182-3.7DFZJY182-5.5CFZJY182-3.7BMRated power (kw)1.52.22.23.73.75.53.7Suitable GS drive modelGS2050YGS2050YGS2075YGS2100YGS2100YGS2100YGS3050YDrive unit power supply (V)Three phase AC 220V 50/60HzRated current (a)10.712.914.523.522.932.510.4Rated frequency (Hz)50506950877050Rated torque（N·m）9.51410.52414262430min power（kW）2.23.73.75.55.57.55.530min current（A）17.6202336.433.847.614.830min torque（N·m）142417.735213735Rated speed（r/min）1500150020001500250020001500Constant power range（r/min）1500～80001500～80002000～100001500～80002500～100002000～100001500～5000Maximum speed（r/min）1000010000120001000012000120007000Moment of inertia（kg·m2）0.00560.00740.00560.01150.00740.01150.0093Weight (kg)27322743324337Installation typeIM B5/B35Cooling fan power supplyThree phase AC 220V 50/60Hz 37W0.1AMounting dimensionsFlange mounting type (B5)Foot installation type (B3) and left and right outgoing line modeFlange foot installation type (B35) and left and right outgoing line modeOverall dimensions of three-phase 380 ~ 440V spindle motorZJY182-1.5BHZJY182-2.2BHZJY182-2.2CFZJY182-3.7BHZJY182-3.7DFZJY182-5.5CFZJY182-7.5EHZJY182-3.7BMA182182182182182182182182B9191919191919191C126126126126126126126126D185185185185185185185185E6060606060606060F324351324406351406406376G198225198280225280280250H150h7150h7150h7150h7150h7150h7150h7150h7I1212121212121212J28h628h628h628h628h628h628h628h6K184184184184184184184184L9393939393939393N156156156156156156156156P3232323232323232Q132159132214159214214184S6060606060606060T44444444Z1212121212121212External dimensions of three-phase 220V spindle motorZJY182-1.5BHZJY182-2.2BHZJY182-2.2CFZJY182-3.7BHZJY182-3.7DFZJY182-5.5CFA182182182182182182B919191919191C126126126126126126D185185185185185185E606060606060F324351324406351406G198225198280225280H150h7150h7150h7150h7150h7150h7I121212121212J28h628h628h628h628h628h6K184184184184184184L939393939393N156156156156156156P323232323232Q132159132214159214S606060606060T444444Z121212121212Product model⑴Spindle servo motor⑵Frame number (182、208、265、320)⑶Design serial number (none: original, a, B, C...: Design serial number)⑷Rated power (kw)⑸Rated speed (V: 600r / min, W: 750rmin, a: 1000r / Mn, B: 1500rmin, C: 2000rmin, e: 3000r / min)⑹Maximum speed (G: 15000r / Mn, F: 12000rmin, H: 10000rmin, M: 7000r / min, l: 4500r / Mn)⑺None: indicates non two speed motor, D: indicates two speed motor⑻Structural installation type: (B5 flange installation, B3 foot installation, B35 flange foot installation)⑼Encoder type (none: incremental 1024p / R, A2: incremental 5000P / R, A5: absolute 21bit)⑽Viewing the position of the junction box from the shaft extension end (none: top position of the junction box, R: right position of the junction box, l: left position of the junction box)⑾Shaft extension (No: optical axis, Y1: with standard keyway)⑿The customer's special order code is represented by two capital letters and brackets⒀Power supply voltage (none: three-phase 380-440v, l: three-phase 220V)Product PackagingFAQQ: Do you support customized manufacturing?A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.Q: How long is your delivery time?A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according toquantity.10-20 days if customized manufacturing.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample with sample price.Q: What is your terms of payment ?A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below
>>
