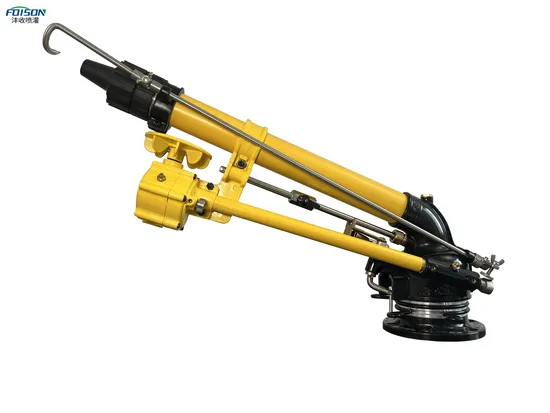

Foison Irrigation Use Far Range Watering Big Gun Sprinkler Spray Gun Whatsapp: 0086-18658226303

US$70.00
50-99 Pieces
US$69.00
100+ Pieces

Basic Info.

Model NO.
FAN50ADJ-S
Power Source
Pressure
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Immersible Pump
Material
Metal
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CCC, CE, GMP
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Warranty
1 Year
After-sales Service
1 Year
Color
Silver
OEM
Yes
Transport Package
Export Carton
Specification
87*23*29
Trademark
FOISON
Origin
China
HS Code
8424200000
Production Capacity
20000/Month

Product Description

Model FSN50 Model FSN50ADJ
Material Al,nylon,ss Material Al,nylon,ss
Use Agriculture,forestry,garden,dust removal Use Agriculture,forestry,garden,dust removal
Connection 2" Flange Connection 2" Flange
Working pressure 0.2-0.7MPa Working pressure 0.2-0.7MPa
Range 26-53m Range 26-53m
Sprinkler type 360°Adjustable Sprinkler type 360°Adjustable
Spray angle 24° Spray angle 24°
D (mm) P (Mpa) Q (m³/h) G (m) U (mm) P (Mpa) Q (m³/h) G (m)
0.2 17.8 26 0.2 17.8 26
16 0.3 21.8 28 16 0.3 21.8 28
0.4 25.2 32 0.4 25.2 32
0.5 28.1 35 0.5 28.1 35
0.3 27.1 32 0.3 27.1 32
18 0.4 31.6 35 18 0.4 31.6 35
0.5 35 38 0.5 35 38
0.6 38.7 41 0.6 38.7 41
0.3 31.2 36 0.3 31.2 36
20 0.4 36 40 20 0.4 36 40
0.5 40.3 43 0.5 40.3 43
0.6 44 46 0.6 44 46
0.4 42.2 41 0.4 42.2 41
22 0.45 44.8 43 22 0.45 44.8 43
0.5 47.8 45 0.5 47.8 45
0.6 51.8 48 0.6 51.8 48
0.4 49.2 43 0.4 49.2 43
24 0.45 52.2 45 24 0.45 52.2 45
0.5 55 47 0.5 55 47
0.6 60.3 50 0.6 60.3 50
0.4 56.7 45 0.4 56.7 45
26 0.5 63.4 48 26 0.5 63.4 48
0.6 69.6 51 0.6 69.6 51
0.7 80 56 0.7 80 56

Model FSW50ADJ-S
Material Al,nylon,ss
Use Agriculture,forestry,garden,dust removal
Connection 2" Flange
Working pressure 0.2-0.7MPa
Range 26-56m
Sprinkler type 360°Adjustable
Spray angle 0-48°
Speed: Adjustable
D (mm) P (Mpa) Q (m³/h) G (m)
0.2 17.8 26
16 0.3 21.8 28
0.4 25.2 32
0.5 28.1 35
0.3 27.1 32
18 0.4 31.6 35
0.5 35 38
0.6 38.7 41
0.3 31.2 36
20 0.4 36 40
0.5 40.3 43
0.6 44 46
0.4 42.2 41
22 0.45 44.8 43
0.5 47.8 45
0.6 51.8 48
0.4 49.2 43
24 0.45 52.2 45
0.5 55 47
0.6 60.3 50
0.4 56.7 45
26 0.5 63.4 48
0.6 69.6 51
0.7 80 56
