3100bph High Speed 5L Pet Preform Bottle Blowing Machine for Plastic Bottle

US$25,000.00-45,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
q5l4
Cavities
4
Bottle Material
Pet Preform
Product Max Volume
5L
Principle
Stretch Blowing Machine
PLC
Mitsubishi
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Wooden Package/According to Customer′s Request
Specification
CE ISO SGS
Trademark
Eceng
Origin
Zhangjiagang Jiangsu
HS Code
8477300000
Production Capacity
100per Year

Product Description

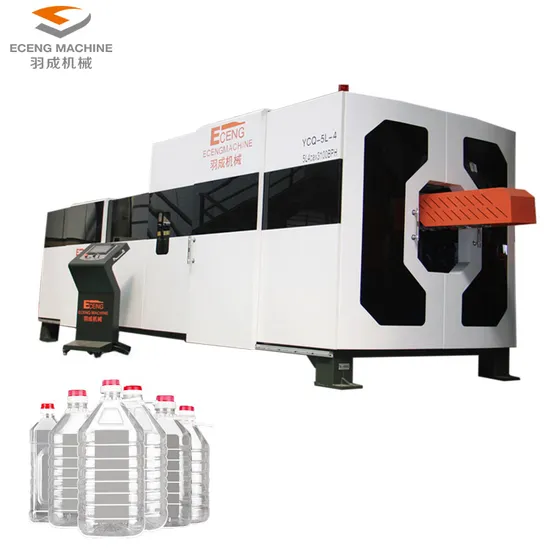

3100BPH High Speed 5L PET Preform Bottle Blowing Machine For Plastic Bottlemodel:YCQ-5L-4
5l fully automatic pet bottle blowing machine Q series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
5l fully automatic pet bottle blowing machine Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. heat and noise are significantly reduced compared with YCQ series.
10. less than 0.2% scrap rate for finished bottle .
Item YCQ-5L-4
Bottle type specification Cavity 4
Theory output 2500-3000
Max.volume 5L
Bottle mouth maximum overall diameter 150mm
Bottle biggest diameter 180mm
Bottle maximum height 400mm
Power specifications Light tube quantity 48pcs
Light tube power 1.5KW
Maximum heating power 72KW
All electric machine installation 75KW
Actual consumption 52.5KW
Air pressure specification Work pressure 7-9kg/cm
Low-pressure gas consumption 1600L/min
Blow bottle pressure 25-35kg/cm
Higher -pressure gas consumption 2000-3000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm
Temperature range 10ÂșC
Consumption 12000kcal/hr
Forzen water flow 88L/min
Machine specification Size of the machine 5.2x2.0x2.0
Weight of the machine 6ton

5l fully automatic pet bottle blowing machine Q series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
Above Price Is Not Accurate,Only For Your Reference.
If You Need Latest Quotation,Please Contact Us!
