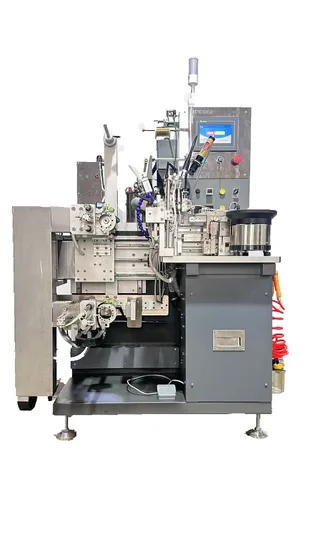

Precision Automatic Alloy Welding Machine for Saw Blades

Product Description

Machine Features
1. The Precision Automatic Alloy Welding Machine for Saw Blades is ingeniously designed as a specialized apparatus for the seamless automatic welding of alloy circular saw blade teeth, ensuring precision and efficiency.
2. This advanced machine supports a myriad of welding functions, including medium welding, left and right welding, and tooth separation welding, while handling ultra-thin sheets with unparalleled skill.
3. Designed for operational ease, this machine allows automatic up and down saw blade handling, empowering a single operator to efficiently manage multiple pieces of equipment simultaneously.
4. The machine boasts fully automatic gear selection, feeding, welding, and tempering processes, delivering a comprehensive solution that can be tailored to meet specific customer requirements with custom configurations.
5. It comes equipped with an innovative rotary hard limit function, enhancing operational safety and precision.
Technical Parameter

Blade diameter	Ø100-Ø305			mm
Welding efficiency	500-750			T/hour
Alloy length	3.5-10			mm
Alloy width	1.5-6.5			mm
Alloy thickness	1.5-3.5			mm
Welding accuracy	≤0.08			mm
Operating air pressure	≥0.45			MPa
Working water pressure	≥4			kg/cm²
Supply voltage	AC220V 50Hz
Power	6.5			KW
Weight	300			kg
Machine size	1120×1100×1600			mm

---
