Product Details
Product Description
Product Description
FEATURES AND BENEFITS
• Low total thermal resistance (0.013°C-in2 /W at 50 psi)
• Inherently tacky and easy-to-use – no adhesive required
• High reliability
• Meets all environmental requirements including RoHS
• Provides high value price / performance point
LAIRD Tpcm585 Series is a high-performance thermal phase change material (PCM) designed
to meet the thermal reliability and price requirements of high-end thermal applications.
The Series is inherently tacky, flexible and exceptionally easy-to-use. The Tpcm 580 Series is
available in four thicknesses: 0.003” (LAIRD TPCM 583), 0.005” (LAIRD Tpcm585), 0.008” (LAIRD TPCM 588),
0.010” (LAIRD TPCM 5810) and 0.016” (LAIRD TPCM 5816).
At temperatures above its transition temperature of 50°C (122°F), the Tpcm 580 Series
begins to soften and flow, filling the microscopic irregularities of the components it comes
into contact with. The result is an interface with minimal thermal contact resistance. Due to
the gradual change in viscosity (softening), it minimizes migration (pump-out).
The Tpcm 580 Series can be supplied as cut parts in strips and rolls with top tabbed liners for
easy application. The top tabbed liner can be removed immediately or provide a protective
cover during shipping, and can be removed at assembly. It can also be supplied in sheets and
custom die-cut configurations; and meets all environmental requirements including RoHS.
TPCM 580 FEATURES AND BENEFITS
• Low total thermal resistance
(0.013°C-in 2 /W at 50 psi)
• Inherently tacky and easy-to-use –
no adhesive required
• High reliability
• Meets all environmental
requirements including RoHS
• Provides high value price
/ performance point
APPLICATIONS
• Microprocessors
• Chipsets
• Graphic processing chips
• Custom ASICS
STANDARD PACKAGING
Sheets: 9” x 9” (228.6 mm x 228.6 mm)
18” x 18” (457.2 mm x 457.2 mm)

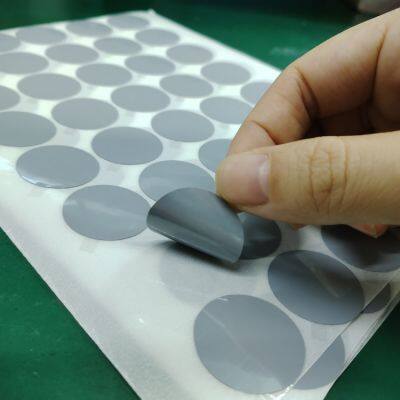

Cut Parts: On strip with top tabbed liner
Individual cut through
>>
