Concrete Pump 43m 170m³ /H New Mobile Concrete Pump Truck Hb43V

Product Description

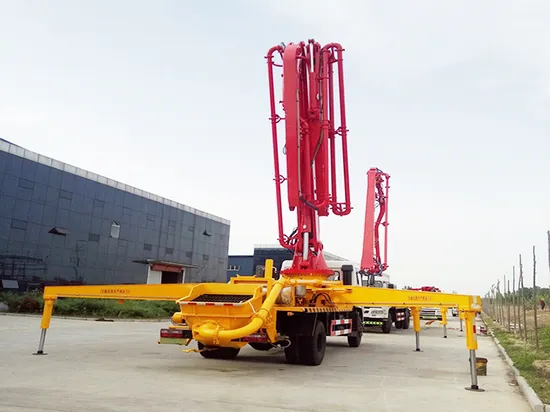

Product Description Truck Mounted Folded Boom Pump HB43V
One Button Stabilization Technology
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
Boom Anti Vibration Technology
The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.
Energy Saving Technology
With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.
Anti Overswing Technology
By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%
Product Parameters

CATEGORY	ITEM	UNIT	HB43V
Overall	Outline dimension	mm	11160×2500×3990
	Oerall weight	kg	31000
	Brand	--	Sinotruk
Chassis	Model	--	ZZ5347V524HC1
	Wheelbase	mm	4800+1400
	Max.power	kW	287
Engine	Emission	--	China
	Theoretical	m³/h	170
Pumping system	Concrete pumping pressure	MPa	8
	Theoretical pumping times	num/min	23~26
	Delivery cylinder diameter ×stroke	mm	φ260×2000
Placing boom	Reach height	m	43
	Reach depth	m	29
	Slewing radius	m	37.3
	Slewing angle	°	±270
Others	ransfer tuble	--	Rock valve

Detail Photos
Packaging & Shipping
Company Profile
FAQ

---
